TES10A Gauss Meter | Handheld DC Magnetic Field Tester

PORTABLE DC MAGNETIC FIELD MEASUREMENT

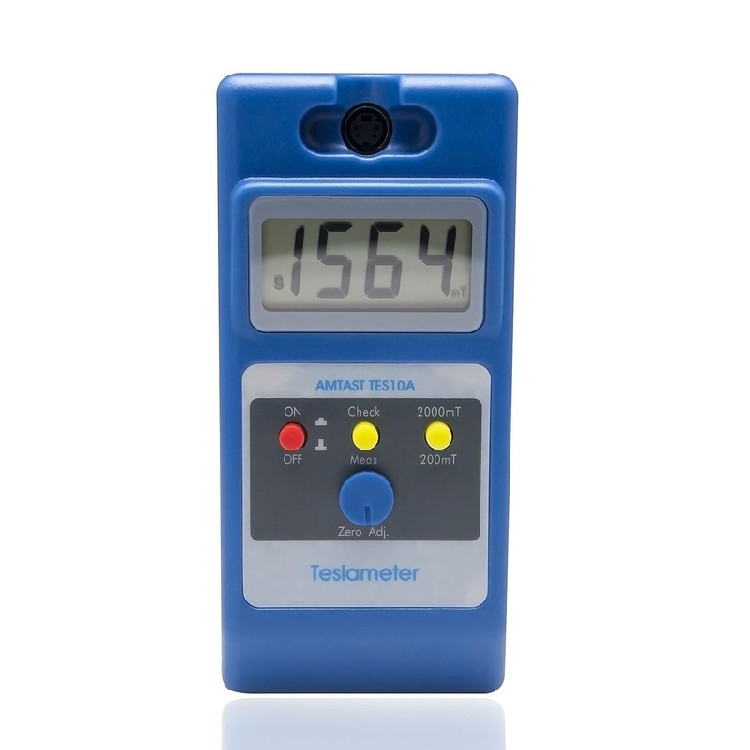

TES10A Gauss Meter

The TES10A is a handheld Gauss/Tesla tester for measuring DC magnetic fields in laboratory, production, and field settings. Its compact body and polarity indication support convenient checks of permanent magnets and other magnetic materials. Selectable measurement ranges cover fields up to 2,000 mT, with readings displayed in mT.

Key Features

1.  Two selectable ranges — measures DC magnetic fields in 0–200.0 mT and 0–2,000 mT ranges

2.  Polarity indication — indicates the polarity of the measured magnetic field

3.  Compact handheld design — small and light for convenient carrying and field use

4.  Hall probe options — supports axial or transverse Hall probes

5.  Flexible power — operates on four AA batteries or a 6 V DC adapter

Technical Specifications

Measurement range	0–200 mT; 0–2,000 mT
Accuracy	±2% from 0–999 mT; ±5% from 1,000–2,000 mT
Resolution	0.1 mT; 1 mT
Magnetic field type	DC
Display and polarity	3½-digit digital display; mT; field polarity indication
Probe options	Axial or transverse Hall probe
Power supply and autonomy	6 V DC adapter or 4 × AA batteries; more than 50 hours of continuous use (manual specification)
Operating environment	−10 to 40 °C (14 to 104 °F); 35–75% RH (manual specification)
Temperature error	−0.06% per °C (−0.033% per °F) (manual specification)
Dimensions and weight	150 × 70 × 30 mm; 450 g

Measurement Notes

1.  Select the range first — match the range to the expected field strength before taking a reading

2.  Surface measurement — place the Hall probe chip side against the magnetic surface for a reading closer to the measured value

3.  Polarity — the instrument displays field polarity, and probe orientation affects the polarity indication

4.  Unit conversion — 1 mT = 10 Gs

Model Comparison

Magnetic field	TES10A	TES10B	TES10C
Field type	DC	DC	DC and AC
Display units	mT	mT and Gs	mT and Gs
Resolution	0.1 mT, 1 mT	0.01 mT, 0.1 mT	0.01 mT, 0.1 mT
Accuracy	±2% / ±5%	±1% / ±2%	±1% / ±2%

The model differences above are based on the supplied product data. Accuracy values are reproduced as listed; separate range breakpoints for the TES10B and TES10C accuracy values were not specified.
