AMT602 AMT602S AMT603 Gloss Meters | Multi-Angle Meter

MULTI-ANGLE GLOSS METERS FOR SURFACE FINISH

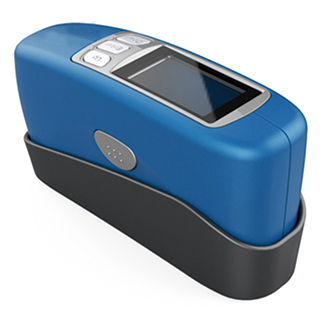

AMT602 AMT602S AMT603 Gloss Meters

The AMT602, AMT602S, and AMT603 gloss meters measure surface gloss on paint, plastic, metal, ceramics, and building materials. The AMT602 and AMT602S use a 60° measurement angle, while the AMT603 offers multiple angle settings for a wider range of gloss levels. A reading takes less than one second, and stored results can be reviewed or transferred through the instrument interface.

Choose the model and measurement geometry to match the surface and gloss range being evaluated. This gloss meter series supports simple, standard, and sample testing modes, with dedicated storage for standard samples and test results.

Key Features

Single and multi-angle	AMT602 and AMT602S provide 60° gloss measurement; AMT603 is designed for multi-angle measurement
Resolution and speed	0.1 GU display resolution and measurement time under one second
Testing modes	Simple, standard, and sample testing modes
Onboard storage	Storage for up to 100 standard samples and 10,000 test samples
Data connection	USB data connection; Bluetooth connectivity is optional
Battery	3,000 mAh lithium battery, specified to support up to 54,300 tests per charge
Standards	The supplied information states conformity with the listed gloss measurement standards

Model Comparison

Measurement angle	AMT602	AMT602S	AMT603
Measurement spot	60°: 9 × 15 mm	60°: 2 × 3 mm	20°: 10 × 10 mm; 60°: 9 × 15 mm; 85°: 5 × 38 mm
Measurement range	60°: 0–1,000 GU	60°: 0–600 GU	20°: 0–2,000 GU; 60°: 0–1,000 GU; 85°: 0–160 GU

Angle for AMT602 and AMT602S: 60°; for AMT603: 20°, 60°, 80°*.

Technical Parameters

Resolution	0.1 GU
Repeatability	0.2% GU
Accuracy	Listed as conforming to JJG 696 Class 1 gloss meter requirements
Test modes	Simple, standard, and sample testing
Measurement time	Less than 1 second
Data storage	100 standard samples; 10,000 test samples
Dimensions	165 × 51 × 77 mm
Weight	Approximately 400 g
Battery	3,000 mAh lithium battery
Data interface	USB; Bluetooth optional
Operating temperature	0 to 40 °C
Operating humidity	Below 85% RH, non-condensing
Referenced standards	DIN 67530; ISO 2813; ASTM D 523; JIS Z 8741; BS 3900 Part D5; JJG 696
Standard accessories	5 V/2 A charger; USB cable; operating manual; software CD; calibration boards

Applications

Surface finish checks	Compare and document surface finish on painted, plastic, metal, ceramic, and building-material samples
Single-angle measurement	The AMT602 and AMT602S are single-angle options for 60° measurement
Different gloss ranges	The AMT603 includes additional angle settings for evaluating surfaces across different gloss ranges
