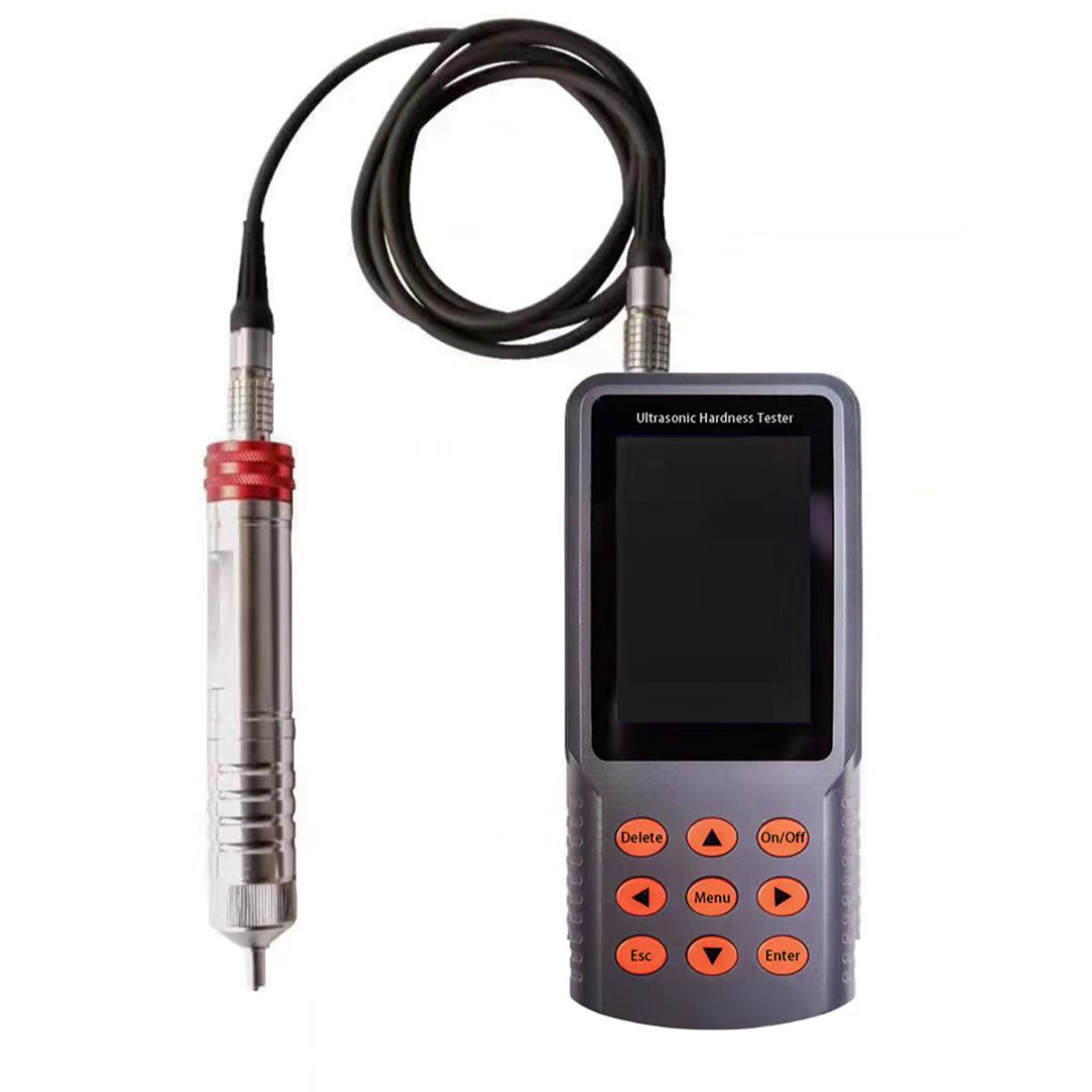

AMT216 Ultrasonic Hardness Tester

AMT216 Ultrasonic Hardness Tester

Applications:

1. The ultrasonic hardness tester is using ultrasonic contact impedance method to compare and test patterns, this is an innovative design, of auto-calibration of probe, presents advantages of high precision, fast speed, easy operation, etc.

2. The hardness measurement covers most ferrous metals, non-ferrous metals and for their alloys in industrial production.

3. It is applicable in hardness test of flange edges, root of gear groove, stamping parts, thin plates, for surface-hardened gear grooves and it's taper parts, as well as shafts, thin-walled pipes, turbines.etc.

Features:

1. Accord to the Standard GB/T 34205-2017, DIN50159-1 and ASTM -A1038

2. For materials with different elastic modulus. multi-point calibration function

3. Support hot-swap and self calibration: automatically + by manual identifies the probe

4. The material function include 3 new material settings to facilitate hardness testing of special materials

5. 3.5-inch IPS (In-Plane Switching) full digital LCD display with wide viewing angle, and the back light can be adjusted arbitrarily. Display resolution 480×320.

6. USB communication interface allows for data exchange with PC and settings on PC.

7. The upper and lower limits of the hardness value can be pre-set, and an automatic alarm will be issued if the range is exceeded, which is convenient for users to meet the needs of batch testing

8. 600 sets of hardness measurement data each includes measurement date, sensor type, material, number of times, single measurement value, average value, maximum value, minimum value, hardness scale and other information

Specifications:

1. Measurement direction: perpendicular to testing surface

2. Hardness scale: HV 10-1900; HB 76-618; HRB 41-105; HRC 20.3-68; HRA60.7-85.6

3. Test Error: HRC: ±2 HRC; HB: ±3% HB; HV: ±4% HV, please refer to the table below

4. Display Measurement: Vickers (HV) + selected hardness scale

5. Measuring materials: steel and cast steel, cast aluminum alloy, pure copper

6. Probe recognition: automatic recognition + manual setting, supports hot swapping

7. Data storage: maximum 600 measurement

8. Working voltage: 3.7V lithium-ion battery pack

9. Continuous working time: about 10 hours

10. Charging power supply: 5V/1000mA

11. Communication interface: USB2.0

12. Test force of Probe: 2kgf (optional: 1kgf, 5kgf,10kgf)

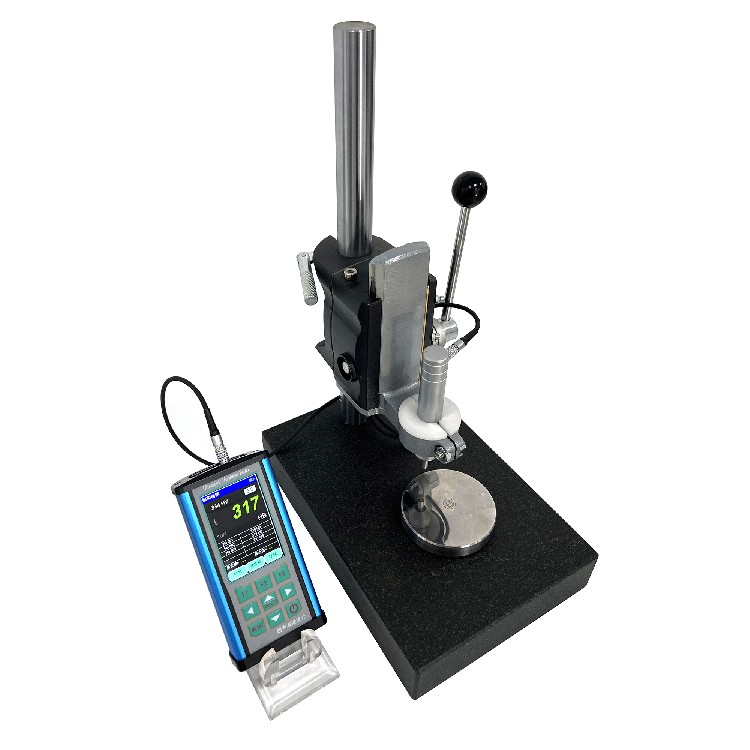

13. Optional Stand

Table 1

Maximum   allowable relative error	Hardness of   standard test block	Maximum allowable relative error of hardness   tester +/-%
		HV1	HV2	HV5	HV10	HV0.1	HV0.3	HV0.8
	<250HV	4	4	4	4	5	5	4
	250HV~500HV	4	4	4	4	6	6	4
	500HV~800HV	5	4	4	4	7	7	5
	>800HV	6	4	4	4	8	8	6

Table 2

Maximum   allowable relative repeatability	Hardness of   standard test block	Maximum allowable relative repeatability of   hardness tester %
		HV1	HV2	HV5	HV10	HV0.1	HV0.3	HV0.8
	≤250HV	8	5	5	5	8	8	9
	>250HV	6	5	5	5	6	6	6

Table 3_Probe specification

Probe (manual)	1kgf	2kgf	5kgf	10kgf
Accessory Type	Optional	Standard	Optional	Optional
Test force	10N	20N	50N	98N
Diameter	22mm	22mm	22mm	22mm
Length	150mm	150mm	150mm	150mm
Resonant rod diameter	3.1mm	3.1mm	3.1mm	3.1mm
Maximum roughness of test surface	Ra<3.2um	Ra<5um	Ra<10um	Ra<15um
Minimum workpiece weight	0.3kg	0.3kg	0.3kg	0.3kg
Minimum workpiece   thickness	2mm	2mm	2mm	2mm
