Digital Illumination Meter
Keywords: digital lux meter, light meter, illuminance meter, LX-90 luxmeter, foot-candle meter
Wide-range handheld illuminance meter with a separate light sensor for precise, easy light measurement.

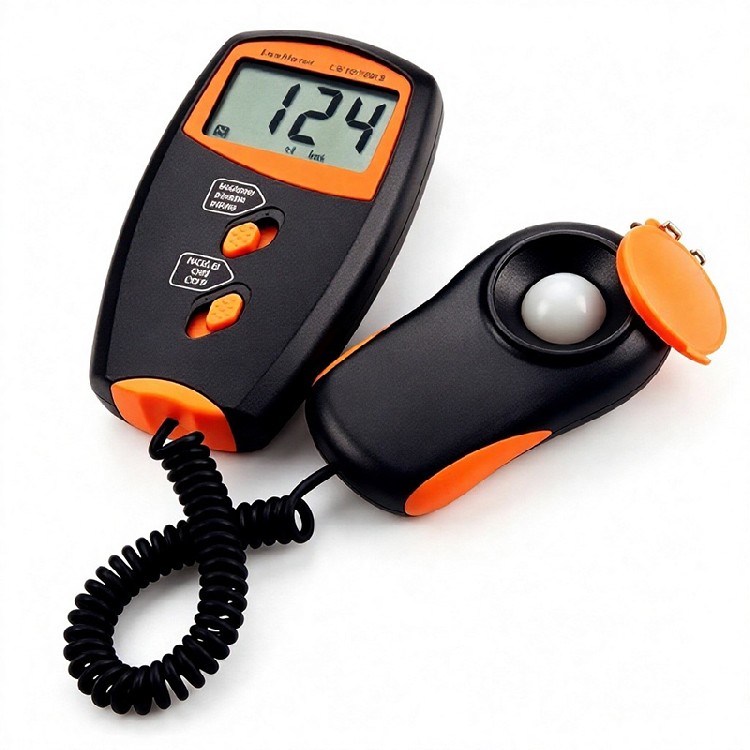

The LX-90 Digital Lux Meter is a precise and easy-to-read instrument built for measuring ambient and artificial light in offices, factories, laboratories, hospitals and schools. Its separate photo-detector lets you take readings at an optimum position without blocking the source, while the wide 1–100,000 Lux range covers everything from dim corridors to bright production lines.
A 3½-digit LCD, automatic zero adjustment, low-battery indicator and rugged construction give reliable service for many years, and the simple three-range selector makes it equally suited to quick spot checks and detailed lighting surveys.
1. Precise and easy readout — 3½-digit LCD with a maximum reading of 1999 for clear, stable display.
2. Wide measurement range — 1 to 100,000 Lux across three ranges (×1 / ×10 / ×100) for dim to bright environments.
3. Separate light sensor — remote photo-detector on a 150 cm lead lets you measure at the ideal position and angle.
4. Automatic zero adjustment — self-calibrating for consistent, drift-free readings.
5. Low-battery & overload indication — clear icons warn of weak battery and out-of-range input.
1. Power on — connect the 9V battery, then press the power button to "ON".
2. Select range — press the range select button to choose the appropriate range for the light level.
3. Position the sensor — remove the detector cap and face the photo-detector horizontally toward the light source.
4. Read the value — read the lux value on the LCD; press HOLD to freeze the reading if needed.
| Display | 3½-digit LCD, max. reading 1999 |
| Ranges | 1 – 100,000 Lux (3 ranges) |
| Resolution | 0~1,999 Lux: 1 Lux / 2,000~19,999 Lux: 10 Lux / 20,000~100,000 Lux: 100 Lux |
| Accuracy | 0~1,999 / 2,000~19,999 Lux: ±(4% rdg + 2d); 20,000~100,000 Lux: ±(5% + 2d) |
| Repeatability | ± 2% |
| Temperature characteristic | ± 0.1 d / °C |
| Test rate | 2 times / sec |
| Photo detector | One silicon photo diode with filter |
| Operating temperature / humidity | 0 to 40°C (32~104°F); 0~70% RH |
| Storage temperature / humidity | -10 to 50°C (14~140°F); 0~80% RH |
| Over-input indication | "1" (2,000 / 20,000 Lux), "OVER" (100,000 Lux) |
| Dimension | 106 × 57 × 26 mm (photo detector); 130 × 72 × 30 mm (meter body) |
| Sensor lead length | 150 cm |
| Weight | 170 g |
| Power supply | One 9V battery, approx. 2 mA consumption |
| Accessories | Instruction manual, battery, carrying case |
1. Office, conference and classroom lighting surveys for healthy illuminance levels.
2. Factory and production-line inspection of work-area lighting.
3. Hospital, hotel and store lighting verification and maintenance checks.
4. General photography, horticulture and laboratory light-level measurement.
