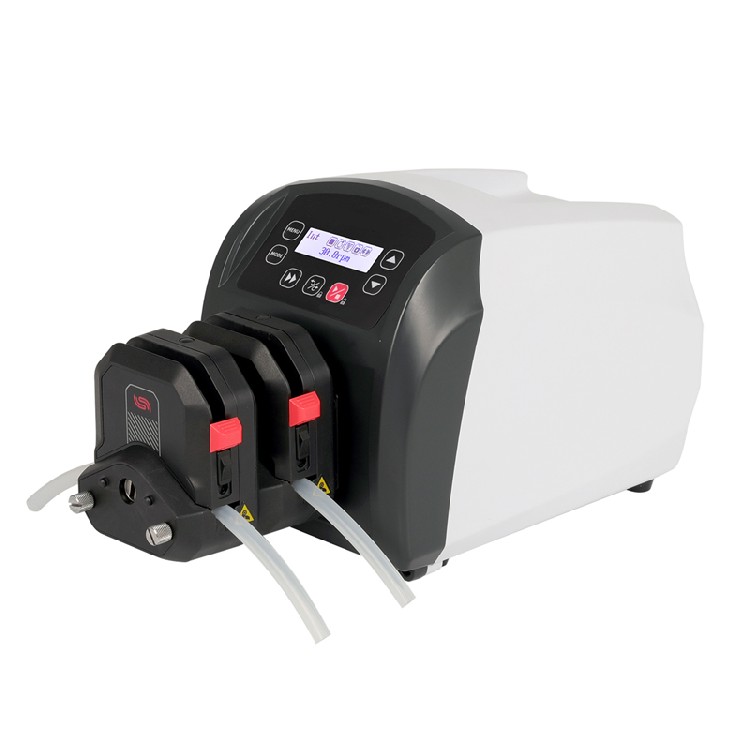

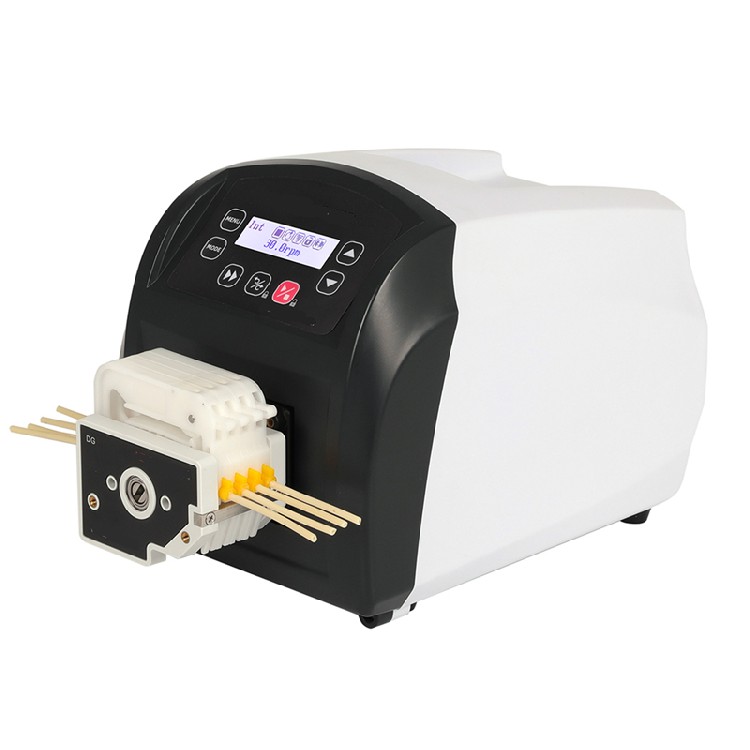

BT101S Variable Speed Intelligent Peristaltic Pump

BT101S Variable Speed Intelligent Peristaltic Pump

Applications:

BT101S speed variable peristaltic pump, it can easily realize stepless speed regulation, specially designed for laboratory.

1. Bacterial/Cell Culture

2. Animal Heart Perfusion

3. Liquid Addition for Synthetic Reactions, Liquid Discharge

4. TFF Ultrafiltration

5. Liquid Supply for Coating and Granulation

6. Laboratory Dispensing

7. Quantitative Transfer

8. Medical Aesthetics (Swelling Anesthesia)

Features:

1. 128 * 32 LCD screen, Chinese and English switching, simple parameter setting, intuitive status display.

2. It can realize start and stop, speed regulation, timing operation and other operations remotely through the APP software, and has monitoring functions such as shutdown alarm, pump tube replacement reminder and so on (optional)

3. Delay start and delay stop function.

4. Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).

5. External analog speed regulation, external control signal control start and stop, positive and negative, physical isolation of external control signal.

6. External control signal supports 5-24v wide voltage input.

7. External speed control signal type (voltage or current) can be switched through the control panel.

8. RS485 communication interface, MODBUS protocol is available, support communication parameter setting easy to connect other equipments.

9. Set multiple control parameters for ODM customization application.

10. Circuit board with conformal coating makes it dust-proof and moisture-proof.

11. Super anti-interference feature, wide input voltage range, acceptable for the complex power environment .

12. ABS plastic housing, creative streamlined appearance, beautiful and simple.

Specifications:

1. Flow range: 0.00011~750mL/min

2. Speed range: 0.1~150rpm

3. Speed resolution: 0.1rpm (speed ≤100rpm), 1rpm (speed >100rpm)

4. Speed accuracy: <0.2%

5. Working time: 0.1~999 S/Min/H/D

6. Dispensing interval time: 0.1~999 S/Min/H/D

7. Dispensing time: 1~999, "0" Infinite loops

8. External control: External control input level 5V, 12V (Standard), 24V (Optional), External control analog 0~5V (Standard), 0~10V, 4-20mA (Optional)

9. Communication interface: RS485 communication interface, MODBUS protocol is available, WiFi function (optional)

10. Power supply: AC 100-240V, 50/60Hz

11. Power consumption: <30W

12. Working environment: Temperature 0 ~ 40°C, relative humidity <80%

13. IP grade: IP31

14. Dimension (L×W×H): 284 x 180 x 197mm

15. Driver weight: 3.6kg

Remarks: W.T.=Wall Thickness; I.D.:=Inner Diameter
