AMT-P100 Single Channel Electronic Pipette

Electronic Pipette / Pipettor

AMT-P100 Single Channel Electronic Pipette

Keywords: electronic pipette, single channel pipette, AMT-P100 pipette, dPette+ electronic pipette, motorized pipettor

A single-channel, motor-driven pipette with five volume ranges (0.5–1000 μL), rechargeable Li-ion power and built-in self-calibration for accurate, fatigue-free liquid handling.

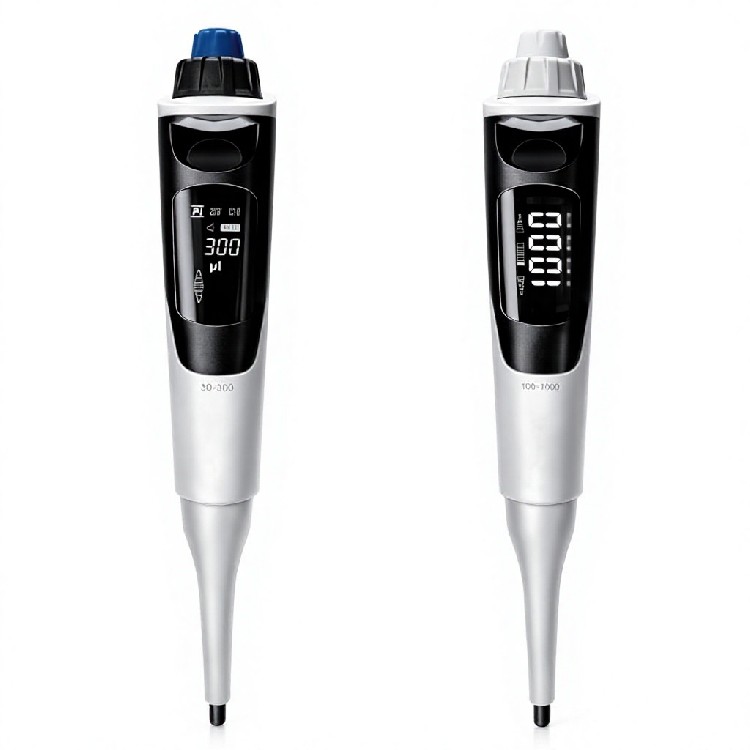

The AMT-P100 Series single-channel electronic pipette (dPette / dPette+) combines the ergonomic, lightweight feel of a manual pipette with the labor-saving convenience and high accuracy of motor-driven digital control. A high-performance stepper motor ensures consistent accuracy and repeatability across the full volume range, eliminating manual pipetting errors.

A parameter knob gives fine volume adjustment and a function wheel allows quick mode switching, alongside a clear LCD that shows volume, unit, mode and battery status, while a secure tip cone guarantees leak-free tip attachment. Full control is handled by just two buttons, with adjustable aspiration and dispensing speeds for comfortable, fatigue-free operation.

Key Features

1.  Five volume ranges — 0.5–10, 5–50, 20–200, 30–300 and 100–1000 μL, covering most daily lab needs.

2.  Motor-driven digital control — high-performance stepper motor for consistent accuracy and repeatability.

3.  Minimal-effort operation — just two buttons handle all settings; small, lightweight, ergonomic body.

4.  Multiple functions — dPette+ supports Pipetting, Mixing, Stepper and Dilution; dPette supports Pipetting and Mixing.

5.  Adjustable speed — aspiration and dispensing speeds freely adjustable.

6.  Rechargeable Li-ion battery — dual charging modes for long operation; battery and charging status shown on the LCD.

7.  Built-in self-calibration — connect to a PC via USB to recalibrate on the fly; no third-party calibration required.

How to Use

1.  Power on — install the charged battery and switch on; the LCD shows volume, unit and mode.

2.  Select range — use the parameter knob to set the required volume for the chosen range.

3.  Attach tip — press a universal tip firmly onto the tip cone until sealed.

4.  Aspirate — use the operating button to draw liquid at the set aspiration speed.

5.  Dispense / Mix / Step / Dilute — switch function with the function wheel (dPette+ offers Pipetting, Mixing, Stepper and Dilution).

6.  Calibrate — connect to a PC via USB and run self-calibration when needed.

Technical Specifications

Channels	1 (single channel)
Volume ranges	0.5–10, 5–50, 20–200, 30–300, 100–1000 μL
Increment	0.01 / 0.1 / 1 / 1 / 5 μL (per range)
Power supply	Rechargeable Li-ion battery; dual charging modes; 100–220 V 50/60 Hz adapters (US / CN / EU / UK plugs)
Display	LCD showing volume, unit, mode and battery status
Functions (dPette+)	Pipetting, Mixing, Stepper, Dilution
Functions (dPette)	Pipetting, Mixing
Calibration	Built-in self-calibration via USB to PC; per ISO 8655
Tip compatibility	Fits most universal pipette tips

Accuracy & Precision (per ISO 8655)

Volume Range (μL)	Increment (μL)	Test Volume (μL)	Systematic Error (μL / %)	Random Error (μL / %)
0.5–10	0.01	10	±0.10 / ±1.00	±0.05 / ±0.50
		5	±0.05 / ±0.50	±0.10 / ±2.00
		1	±0.01 / ±5.00	±0.03 / ±3.00
5–50	0.1	50	±0.40 / ±0.80	±0.15 / ±0.30
		25	±0.25 / ±1.00	±0.25 / ±1.00
		5	±0.15 / ±4.00	±0.125 / ±2.50
20–200	1	200	±1.20 / ±0.60	±0.40 / ±0.20
		100	±1.00 / ±1.00	±0.40 / ±0.40
		20	±0.80 / ±4.00	±0.20 / ±1.00
30–300	1	300	±1.80 / ±0.60	±0.60 / ±0.20
		100	±1.00 / ±1.00	±0.40 / ±0.40
		30	±1.20 / ±4.00	±0.21 / ±0.70
100–1000	5	1000	±6.00 / ±0.60	±2.00 / ±0.20
		500	±5.00 / ±1.00	±1.00 / ±0.20
		100	±3.00 / ±3.00	±0.60 / ±0.60

Applications

1.  Precise sampling and transfer of liquids in molecular biology, biochemistry and clinical laboratories.

2.  Sample preparation, reagent dispensing and dilution in research and quality control.

3.  Cell-culture feeding and routine media handling.

4.  Pharmaceutical, food and environmental testing workflows.
