AMT211 Surface Roughness Tester

Keywords: surface roughness tester, surface roughness gauge, profilometer, roughness meter, Ra surface tester

Measure Surface Texture Anywhere — 320μm Range, 20+ Parameters, Bluetooth.

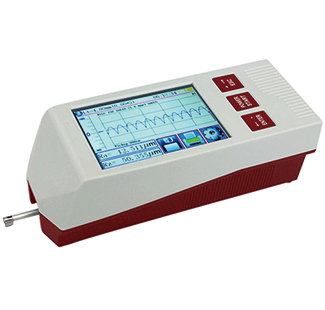

The AMT211 is a compact handheld surface roughness tester for shop-floor and mobile measurement of machined parts. It evaluates surface texture with a wide range of parameters (Ra, Rz, Rq, Rt and more) in a 320μm vertical measuring range, and displays results both digitally and graphically on a 3.5-inch color LCD. It complies with ISO 4287, ANSI B46.1, DIN 4768 and JIS B601.

Featuring an integrated design of main display unit, drive unit and sensor, the AMT211 offers Bluetooth printing, a mobile APP for wireless operation, DataView software for PC analysis, and a built-in 3000mAh lithium-ion rechargeable battery with over 50 hours of working time. Optional curved-surface, small-hole and deep-groove sensors extend measurement to complex part shapes.

Key Features

1. 20+ Measurement Parameters — Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rku, Rsm, Rmr, RPc, Rk, Rpk, Rvk and more.

2. 320μm Large Measuring Range — Z-axis range of -160μm to +160μm with resolutions down to 0.002μm.

3. Multi-Standard Compliance — ISO 4287, ANSI B46.1, DIN 4768 and JIS B601.

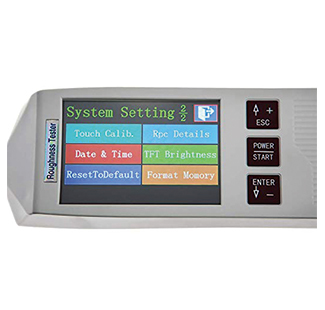

4. 3.5-inch Color Graphic LCD — Clear display of profiles, load curves and measurement results with adjustable backlight.

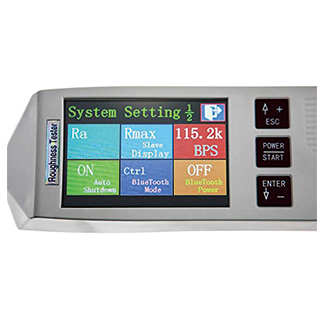

5. Bluetooth & Mobile APP — Wireless operation via mobile APP, Bluetooth printing, and PC connection with DataView software.

6. Long Battery Life — Built-in 3000mAh lithium-ion battery with over 50 hours of working time.

7. Large Data Storage — Stores 100 groups of raw data and measured profiles.

8. Rugged & Portable — Electromechanical integrated design with a metal drive-unit case, compact and reliable for shop-floor use.

How to Use

1. Prepare — Turn on the tester, check the battery and clear the surface of the part to be measured.

2. Position the Instrument — Place it correctly and stably on the surface, with the pickup trace vertical to the process line.

3. Check the Pickup — Confirm the pickup position is near the middle of its range for the best results.

4. Start Measurement — Press the Start key or the Start touch area to begin tracing the surface.

5. Read & Review — View the results on the main and secondary displays, zoom the profile, or print and store the data as needed.

Technical Specifications

Model	AMT211
Measurement Range (Z-axis)	320μm (-160μm to +160μm) / 12600μin
Measurement Range (X-axis)	17.5 mm / 0.69 in
Resolution	0.002μm/±20μm; 0.004μm/±40μm; 0.008μm/±80μm; 0.02μm/±160μm
Evaluation Parameters	Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz(JIS), Ry, Rs, Rsk, Rku, Rmax, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2
Standards	ISO 4287, ANSI B46.1, DIN 4768, JIS B601
Display	3.5-inch, 480 × 320 color graphic LCD
Filters	RC, PC-RC, Gauss, D-P
Sampling Length (lr)	0.25, 0.8, 2.5 mm
Assessment Length (ln)	Ln = lr × n, n = 1–5
Stylus Tip	Natural diamond, 90° cone angle, 5μm tip radius
Measuring Force	4 mN
Accuracy	±(5nm + 0.1A)
Repeatability	No more than 3%
Residual Profile	No more than 0.010μm
Power Supply	Built-in 3.7V lithium-ion battery; charger DC 5V, 800mA/5h
Working Time	More than 50 hours
Display Unit Size (L×W×H)	158 × 55 × 52 mm
Drive Unit Size (L×W×H)	115 × 23 × 27 mm
Weight	About 500 g (display + drive + sensor)
Working Environment	-20°C to 40°C, <90% RH

Applications

1. Machined parts & precision component surface inspection

2. Shop-floor production & quality control

3. Automotive, aerospace & tooling surfaces

4. Small holes, curved surfaces & grooves (with optional sensors)

5. Mobile & on-site surface texture measurement

Spare Parts

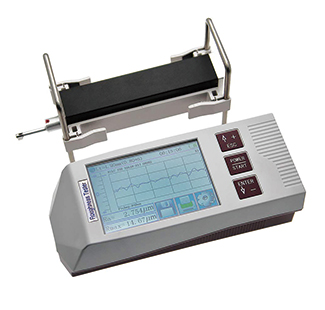

1. Curved surface sensor (optional)

2. Small hole sensor / extra small hole sensor (optional)

3. Deep groove sensor (optional)

4. Measurement stand (optional)

5. Magnetic stand adapter / height gauge adapter (optional)

6. Nosepiece for flat / cylindrical surface (optional)

7. Miniature thermal printer (optional)
