AM2052 Air Bacteria Sampler

Keywords: Air Bacteria Sampler, Air Sampler, Microbial Air Sampler, Microbiological Air Sampler

Introduction

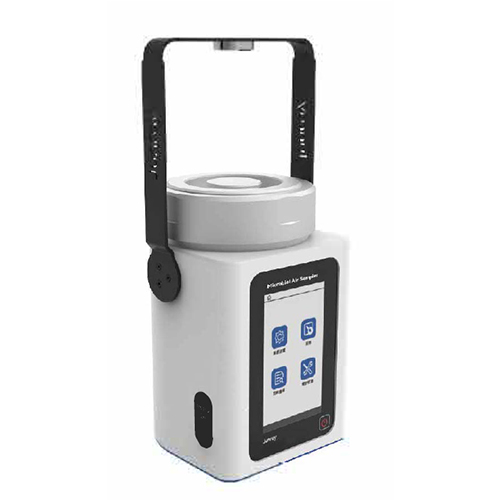

AM2052 Microbial Air Sampler is an efficient portable active air sampler designed for cleanroom and aseptic environments. The sampler is a single-stage multi-aperture impactor, and air is drawn through it at a constant flow rate. Airborne microbes are accelerated as the air passes through the aperture and then impact the surface of the special medium in the petri dish at a speed of 10.8 m/s, capturing particles larger than 1 μm in diameter. The sampler is widely used in pharmaceutical, food and drug, disease control, health and epidemic prevention, hospital and other related industries.

Features

1.High precision electronic flowmeter with flow compensation, flow rate is stable and accurate.

2. Preset locations and sampling plans, supporting free combination.

3. Can automatically fix φ90~100mm petri dish in the best position.

4. Three-level user management and audit track, ensure data integrity.

5. Support ambient air and compressed gas sampling.

6. Control sampling by time or volume, parameters can be freely adjusted.

7. Adjustable sampling delay, time, interval and cycle, meet more sampling requirements.

8. Built-in temperature, humidity, and atmospheric pressure sensor.

9. Screen power saving function, extend battery life.

10. Large capacity storage to record rich information.

11. Exhaust filtration to ensure a clean environment.

12. A built-in battery, long life and fast charge.

13. Light weight, portable design.

Reference Standards

1. ISO 14698

2. BS EN 17141:2020

3. GMP

Specifications

Parameters	Range	Resolution	Maximum Permitted Error
Sampling flow rate	100 L/min	0.1 L/min	±2.5%
Sampling volume	1-9999 L	1 L	±2.0%
Sampling time	0s-23h59min59s	1 s	±0.2%
Sampling delay	0s-23h59min59s	1 s	±0.2%
Sampling interval	0s-23h59min59s	1 s	±0.2%
Sampling mode	Customized sampling, mode preset sampling (7 modes, 8 sites, and 8 parameters can be preset), and high-pressure gas sampling
Sampling cycle	0-999
Petri dish size	φ90-100 mm, and the petri dish can be fixed in the center position
Communication	WIFI, Bluetooth, USB
Data storage	50,000
Data output	USB, Bluetooth (optional Bluetooth printer)
Alarm	Flow blocking alarm, low power alarm
Language	English, Chinese
Data integrity	Three level user management and audit trail
Screen	4.3 inch HD touch screen with automatic power saving mode
Battery	When charge for 3.5 h, battery life 2.8 h
Power adapter	Input AC100-240 V/50-60 Hz; Output DC24V 2A
Noise	< 60 dB (A)
Dimension	(L125 x W127 x H217) mm
Weight	About 1.9 kg (with sampling head)
Power consumption	< 10 W

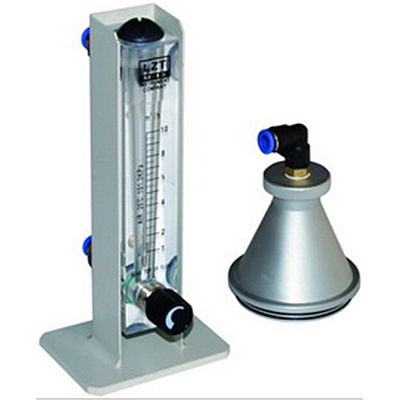

AM2050CS Compressed Gas Sampling Kit

Operate with 2052 host, used to collect microbial content in compressed gas.

1. Equip a pressure valve to reduce compressed pipeline pressure.

2. Material is anodized aluminum, easy for disinfection.

3. Flowmeter is made of high-pressure-resistant material, which has high-pressure resistance and good pressure reduction.

Parameters	Range	Error
Flow range	(0-6000) L/min, adjustable	±4%
Pressure range	(0-10) Mpa	-
Operating temperature	(0-65) °C	-
Weight	< 1 kg	-
