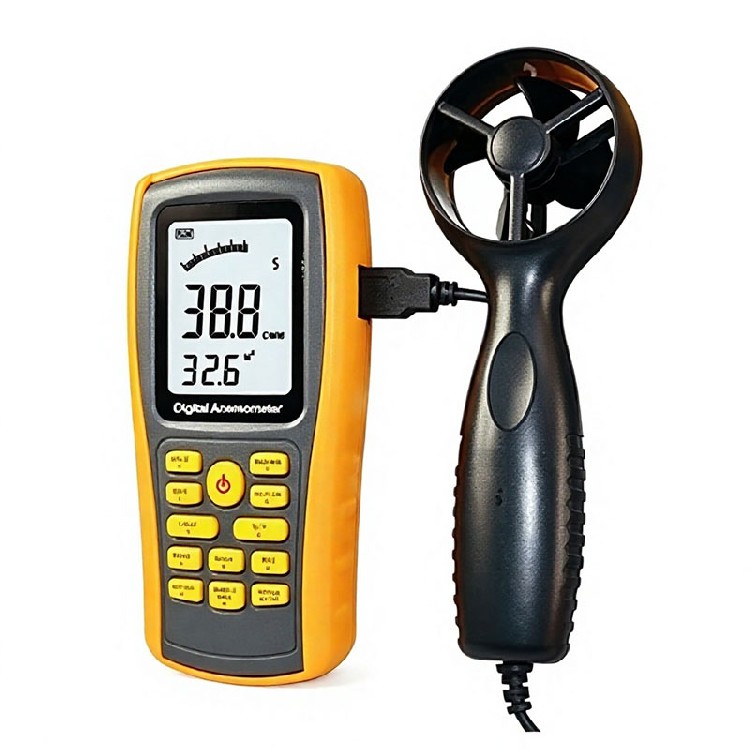

AMF028 Digital Anemometer

Keywords: digital anemometer, AMF028 anemometer, air velocity meter, air volume meter, handheld anemometer

Handheld digital anemometer measuring air velocity to 45 m/s and air volume to 999,900 m³/min with USB data output.

The AMF028 is a handheld digital anemometer for air velocity, air temperature and air volume. Velocity is measured from 0 to 45 m/s with ± 3 % accuracy and can be displayed in m/s, ft/min, knots, km/h or mph, while air volume is calculated up to 999,900 m³/min for duct and outlet work.

The display shows MAX, MIN, average and current readings so a fluctuating airflow can be characterised without repeated note-taking, and data hold freezes a value for recording. Stored readings can be transferred to a PC over the USB interface, and the unit switches itself off after about 14 minutes without operation to preserve the 9 V battery.

Key Features

1.  Air Velocity and Volume — measures velocity up to 45 m/s and calculates air volume up to 999,900 m³/min.

2.  Air Temperature Measurement — 0–45 ℃ with 0.1 ℃ resolution and ± 2 ℃ accuracy.

3.  MAX / MIN / AVG / Current — all four readings are available so fluctuating airflow can be characterised on the spot.

4.  Five Velocity Units — m/s, ft/min, knots, km/h and mph with °C / °F selection.

5.  USB Interface and Software — stored readings can be transferred to a PC for reporting.

6.  Data Hold — freezes the current reading for manual recording.

7.  Backlight — 12 seconds of backlight activated by pressing any key.

8.  Low Battery Indication — warns before the cells are too weak for accurate readings.

9.  Auto Power Off — switches off after 14 minutes without operation, or can be shut down manually.

10.  Handheld Body — 72 × 35 × 145 mm with a vane head sized for duct openings.

Technical Specifications

Model	AMF028
Product Name	Digital Anemometer
Measuring Items	Air velocity, air temperature, air volume
Air Velocity Range	0–45 m/s, accuracy ± 3 %
Air Temperature Range	0–45 ℃ / 32–113 ℉, accuracy ± 2 ℃
Air Flow Volume	0–999900 m³/min
Resolution	0.1 ℃; 0.1 m/s
Velocity Units	m/s, ft/min, knots, km/h, mph
Temperature Units	°C / °F selection
Readings	MAX / MIN / AVG / current reading, data hold
Interface	USB interface with software
Power	6F22, 9 V battery
Auto Power Off	14 minutes without operation
Backlight	12 seconds active by pressing any key
Dimensions	72 × 35 × 145 mm

Applications

1.  HVAC airflow checks at diffusers, grilles and duct openings.

2.  Industrial ventilation and fume extraction surveys.

3.  Greenhouse, cold store and drying room airflow verification.

4.  Educational and laboratory demonstrations of air velocity and volume.
