AMF115A and AMF115B Digital Anemometers | Wind Speed Meter

HANDHELD ANEMOMETERS FOR AIR VELOCITY AND TEMPERATURE

AMF115A and AMF115B Digital Anemometers

The AMF115A and AMF115B are handheld digital anemometers for measuring air velocity and air temperature. Both models provide multiple wind-speed units, temperature conversion between Celsius and Fahrenheit, and common reading modes for field measurements. The AMF115B adds air-volume measurement, computer communication, Bluetooth connectivity, and data-recording features.

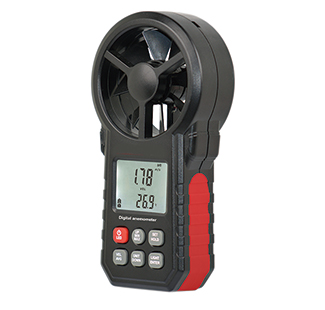

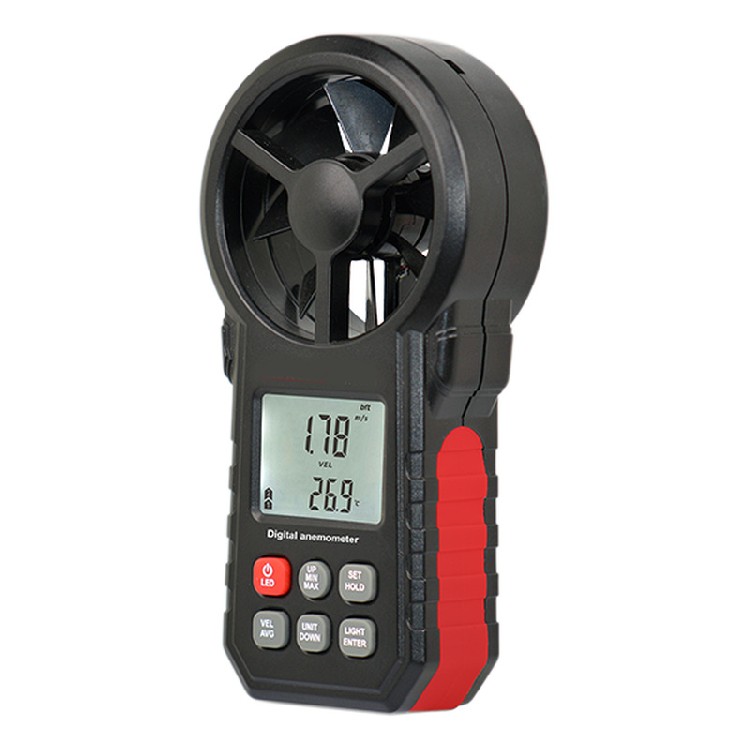

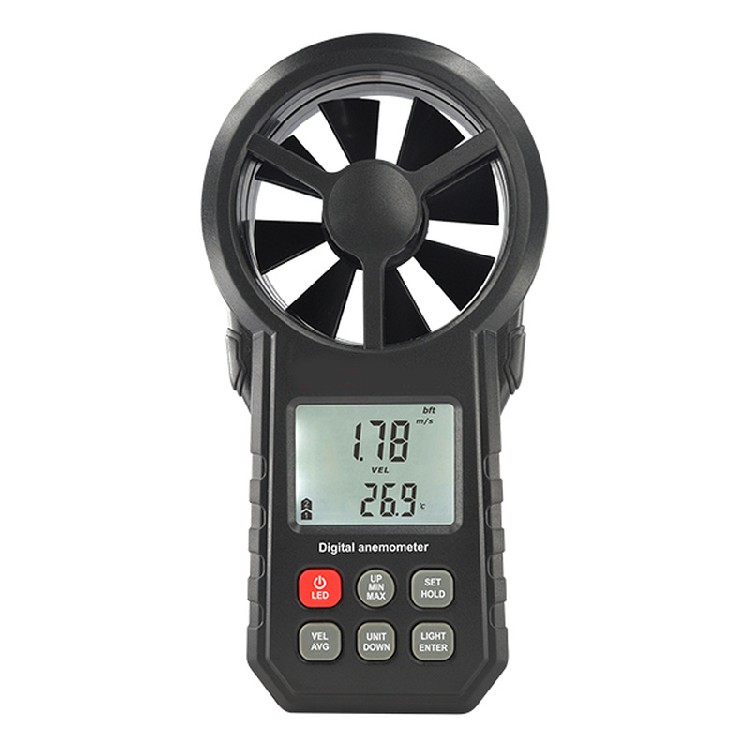

The impeller sits at the top of the instrument, so the vane can be held directly in the air stream while the readings are taken. The LCD and the keypad are on the front face, and both models run on a single 9 V battery.

Key Features

Air velocity	Measurement up to 30 m/s with selectable units: m/s, ft/min, knots, km/h, and mph
Air temperature	Measurement from −10 °C to 45 °C, with °C/°F selection
Reading modes	Real-time, maximum, minimum, and average wind-speed readings, plus data hold
Display and power	Beaufort wind scale, wind-chill indicator, low-battery indicator, display lighting, and automatic shutdown after 10 minutes without button operation
AMF115B additions	Air-volume measurement, USB communication with computer software, Bluetooth connection to a mobile app, and recording, review, and export functions

Model Comparison

Parameter	AMF115A	AMF115B
Measured parameters	Air velocity and air temperature	Air velocity, air temperature, and air volume
Air-volume measurement	Not available	Available; CMM and CFM units; inlet area can be set
Readout and recording	Real-time, maximum, minimum, average; data hold	Adds 2/3 maximum wind-speed value, record/read/delete functions, and computer/mobile data handling
Computer / mobile connection	Not specified	USB communication with computer application; Bluetooth communication with mobile app
Weight (including battery)	184 g	186 g

Technical Specifications

Air velocity range	0–30 m/s; 0–5,860 ft/min; 0–55 knots; 0–90 km/h; 0–65 mph
Air velocity resolution	0.01 m/s; 1.968 ft/min; 0.019 knots; 0.036 km/h; 0.022 mph
Air velocity threshold	0.3 m/s; 60 ft/min; 0.6 knots; 1 km/h; 0.7 mph
Air velocity accuracy	±5% ± 0.1 m/s; ±5% ± 20 ft/min; ±5% ± 0.2 knots; ±5% ± 0.4 km/h; ±5% ± 0.2 mph
Air temperature range	−10 to 45 °C (14 to 113 °F)
Air temperature resolution	0.1 °C; 0.2 °F
Air temperature accuracy	±2 °C; ±3.6 °F
Battery	9 V battery (6F22)
Current consumption	About 6 mA; about 16 mA with Bluetooth on (AMF115B)
Operating temperature	−10 to 45 °C (14 to 113 °F)
Operating humidity	Less than 90% RH
Storage temperature	−10 to 50 °C (14 to 122 °F)
Dimensions	165 × 85 × 39 mm
Temperature sensor	Negative temperature coefficient (NTC) resistance sensor

Applications

Ventilation checks	Spot checks of air movement and temperature in ventilation work
HVAC work	HVAC balancing and general field-measurement tasks
Maintenance	Maintenance checks where a handheld instrument is easier to place than a fixed sensor
Data capture	Workflows that also require air-volume readings or digital data capture (AMF115B)
