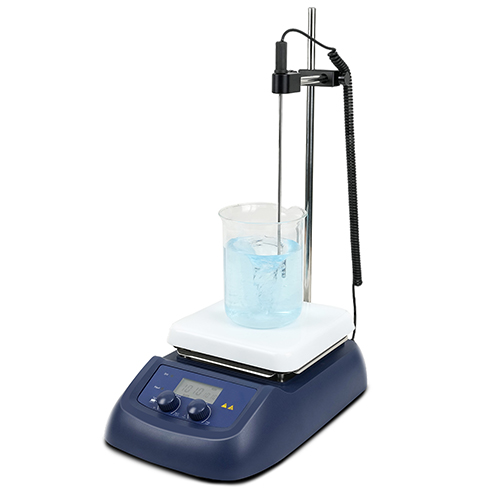

MS7-H380-E LCD Digital Magnetic Hotplate Stirrer 7 Inch Aluminum cover with ceramic coating

MS7-H380-E LCD Digital Magnetic Hotplate Stirrer 7 Inch Aluminum cover with ceramic coating

Features:

1. Aluminum cover with ceramic coating, strong corrosion resistance, easy to clean.

2. Efficient diversion platform and slope to prevent liquids from entering the machine and corroding electronic components.

3. Maximum heating temperature of 380°C, maximum stirring speed of 1500rpm, and maximum stirring volume of 20L [H2O].

4. LCD displays speed, time, and temperature parameters clearly and intuitively.

5. Can be connected to an external temperature sensor PT1000 for precise control of sample temperature.

6. Protection features: dry burn protection, overcurrent protection, ground fault protection, and overtemperature protection.

7. Residual heat warning function: when the disc surface temperature exceeds 50°C, heating will shut off, and the screen will flash “HOT” as a reminder of the high temperature, even if the power is turned off, the display will still flash “HOT”.

Specifications:

1. Work plate dimension: 184×184mm

2. Work plate material: Aluminum cover with ceramic coating

3. Motor type: DC brush motor

4. Stirring positions: 1

5. Max. stirring quantity [H2O]: 20L

6. Max. magnetic bar [length]: 80×10mm

7. Speed range: 80~1500rpm

8. Speed display: LCD

9. Temperature display: LCD

10. Display resolution: 1rpm

11. Heating temperature range: Room Temp. to 380°C, increment 1°C

12. Temperature display resolution: ±0.1°C

13. Heating liquid temperature control accuracy: ±1°C (<100°C); ±1% (>100°C)

14. Overheating temperature protection: 410°C

15. External temperature sensor: PT1000

16. External temperature sensor: PT1000 (accuracy±0.2°C)

17. Power: 900W

18. Voltage,Frequency: 100~120V,60Hz; 200~240V,50Hz

19. “Hot” warning: 50°C

20. Protection class: IP21

21. Dimension [WxDxH]: 366 x 240 x 126mm

22. Weight: 3.5Kg

23. Permissible ambient temperature and humidity: 5~40°C, 80%RH
