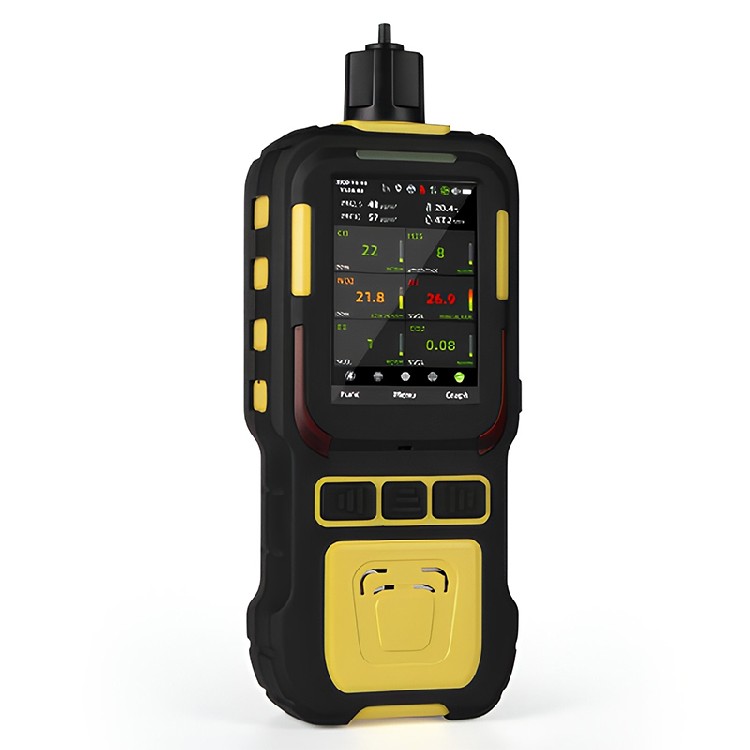

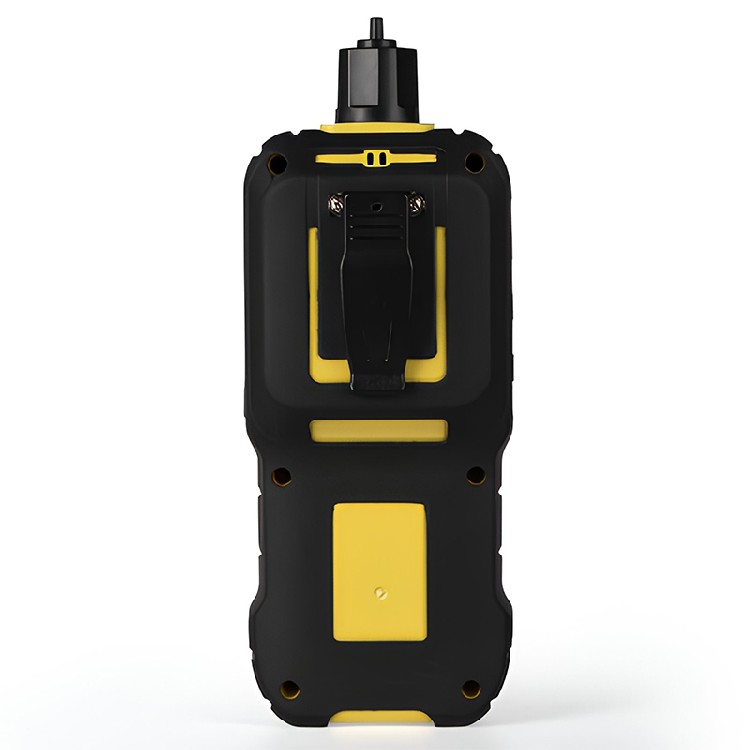

BX610 6 in 1 Multi Gas Detector with Pump

BX610 6 in 1 Multi Gas Detector with Pump

Features:

1. The flow of the sampling pump is adjustable in 6 gears, which is suitable for different detection environments. The flow range is 300-800ml / min.

2. Automatic alarm and prompt in case of sampling pump failure.

3. Real time detection of temperature and humidity in the environment.

4. Support the mode switching between real-time data display and real-time curve display of gas concentration.

5. Support gas unit switching function.

6. Support mixed gas calibration mode, convenient and fast.

7. It supports external TF memory card storage mode and can read out the stored data through USB cable.

8. External storage. CSV file format, data view at a glance.

9. Various data storage methods, including alarm storage, fixed storage and manual storage.

10. Support the expansion of pm2.5/pm10 detection module to obtain real-time particle concentration information. The measurement range is 0~1000μg/M3

11. Support external Bluetooth printer, real-time printing of detection data.

12. It supports switching between Chinese and English, and other languages can be customized.

13. Support GPS positioning function.

14. Large capacity (4000mAh) rechargeable lithium battery, longer service life

15. Explosion proof: Ex ib llC T3 Gb

16. Protection category: IP65

Specifications:

1. Max Gas: 6 kinds, can select 1~6 kinds of gas from the support gas list.

2. Not all gases and range are listed, if you need more information, please contact us.

3. Supported Gas, Range, Low and High Alarm:

    1) EX: 0~100%LEL; 20%LEL; 50%LEL

    2) O2: 0~30%vol; 19.5%vol; 23.5%vol

    3) CO: 0~1000ppm; 50ppm; 150ppm

    4) H2S: 0~100ppm; 10ppm; 35ppm

    5) CO2: 0~5%vol; 1.00%vol; 2.00%vol

    6) NO2: 0~20ppm; 5.0ppm; 10.0ppm

    7) C2H4: 0~100%LEL; 20%LEL; 50%LEL

    8) C3H8: 0~100%LEL; 20%LEL; 50%LEL

    9) C2H5OH: 0~100%LEL; 20%LEL; 50%LEL

    10) NH3: 0~100ppm; 25ppm; 50ppm

    11) CL2: 0~20ppm; 5ppm; 10ppm

    12) O3: 0~20ppm; 5ppm; 10ppm

    13) SO2: 0~20ppm; 2ppm; 5ppm

    14) PH3: 0~20ppm; 0.3ppm; 5ppm

    15) HCN: 0~500ppm; 10ppm; 20ppm

    16) HCL: 0~50ppm; 10ppm; 20ppm

    17) VOC: 0~100ppm; 20ppm; 50ppm

    18) C6H6: 0~100ppm; 20ppm; 50ppm

    19) N2: 70~100% vol

    20) SO3: 0~100ppm
