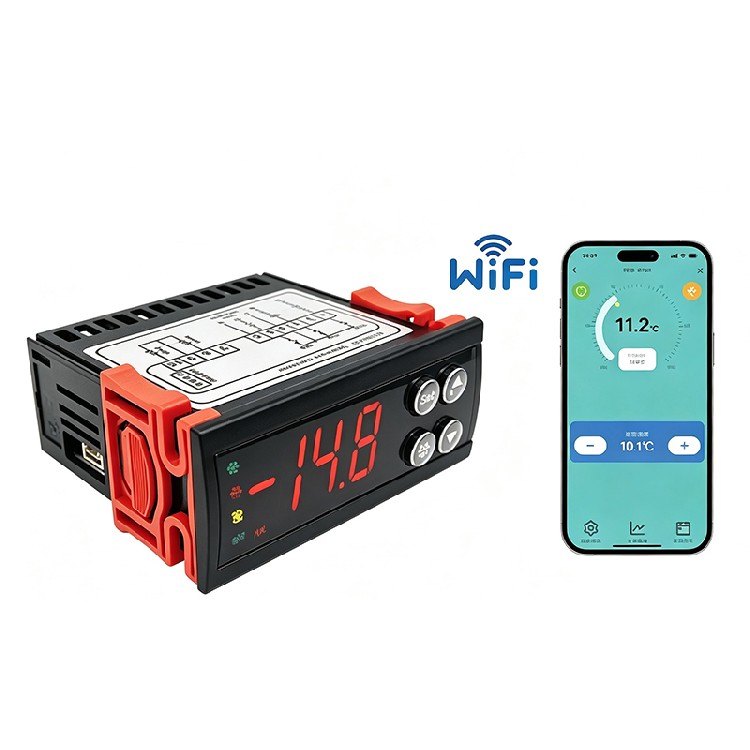

ECS-974T Digital Temperature Controller with WIFI

Temperature Controller

ECS-974T Digital Temperature Controller with WIFI

Keywords: digital temperature controller, ECS-974T thermostat, defrost fan controller, Smart Life wifi temperature controller, refrigerator thermostat

Digital refrigeration temperature controller with compressor, defrost and fan outputs, a -50°C to 99°C measuring and controlling range and Smart Life WiFi remote monitoring.

Key Features

1.  Refrigeration, Defrost and Fan Outputs: Compressor output for refrigeration, defrost output for automatic or manual defrost, and fan output for air circulation — flexible configuration for various temperature control needs.

2.  Wide Temperature Measurement Range: Stable and accurate control across a wide temperature range (see "Technical Specifications" below for the exact figures).

3.  Bright LED Display: Displays real-time current temperature and setpoint values; clear and visible readings even in low-light conditions.

4.  Safety and Protection Functions: Compressor delay protection to prolong compressor life; over-temperature alarms to prevent system damage.

5.  Easy Programming and Operation: Simple button interface for quick setup and adjustments; supports manual calibration for precise system tuning.

6.  Wi-Fi Remote Control: 2.4G Wi-Fi connection for remote check and control via the Smart Life app.

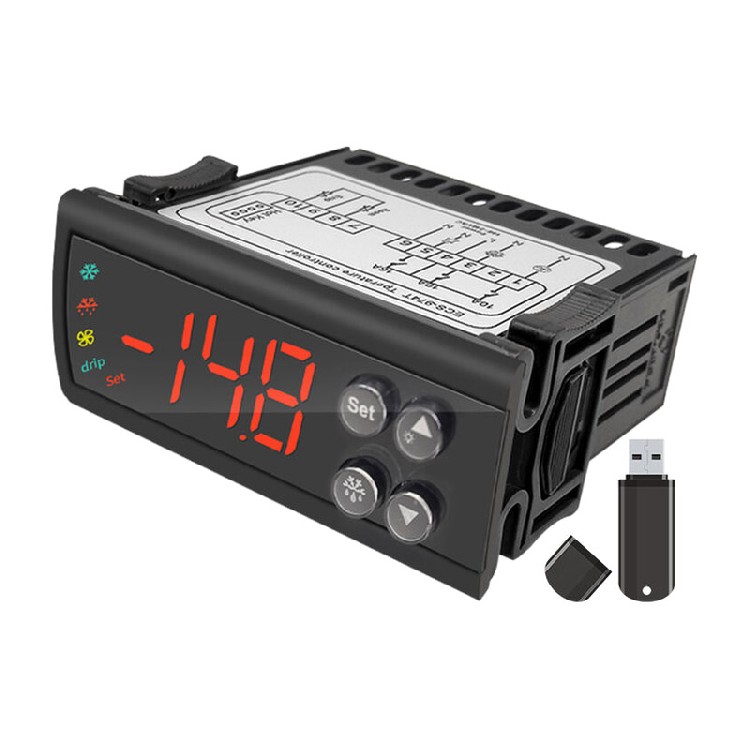

7.  Copy Card Support: Parameters can be uploaded to / downloaded from a copy card for quick batch setting.

Technical Specifications

Model	ECS-974T
Temperature Measuring Range	-50°C ~ 99°C
Temperature Control Range	-50°C ~ 99°C
Resolution	0.1°C / 1°C selectable
Accuracy	±1°C (-40°C ~ 50°C); ±2°C (others)
Sensor Type	NTC 10K thermistor (cabinet sensor + evaporator sensor)
Power Supply	100 ~ 240V AC
Power Consumption	≤ 3W
Output	Compressor; cool / defrost fan
Relay Output Capacity	10A / 220V AC
Display	LED display
Front Panel Protection	IP65
Operating Ambient Temperature	0°C ~ 55°C
Storage Temperature	-25°C ~ 75°C
Storage Humidity	20% ~ 85% RH (non-condensing)
Product Dimensions	78.5 x 34.5 x 74 mm
Mounting Cutout	71 x 29 mm
Material	Fire-resistant ABS
Wi-Fi	2.4G Wi-Fi; remote monitoring and control via Smart Life app
Other Functions	Parameter menu P0 ~ P32 with administrator password protection; defrost control modes (electric / reverse cycle / free defrost); fan control modes FC0 / FC1; high / low temperature alarm with independent differential and delay (HAL / LAL); data-lock and keyboard-lock; fault codes E1 / E2 / AH1 / AL1

Applications

1.  Commercial Refrigeration Systems: Ensure consistent cooling.

2.  Aquariums and Fish Tanks: Maintain ideal water temperatures.

3.  Incubators: Provide stable environments for hatching.

4.  Greenhouses: Regulate temperatures for optimal plant growth.

5.  HVAC Systems: Improve refrigeration efficiency in residential and commercial buildings.

6.  Food Processing and Storage: Safeguard food safety and quality.
