Temperature Controller
Keywords: cold storage temperature controller, SH-5080T thermostat, defrost fan controller, Smart Life wifi temperature controller, digital temperature controller for freezer

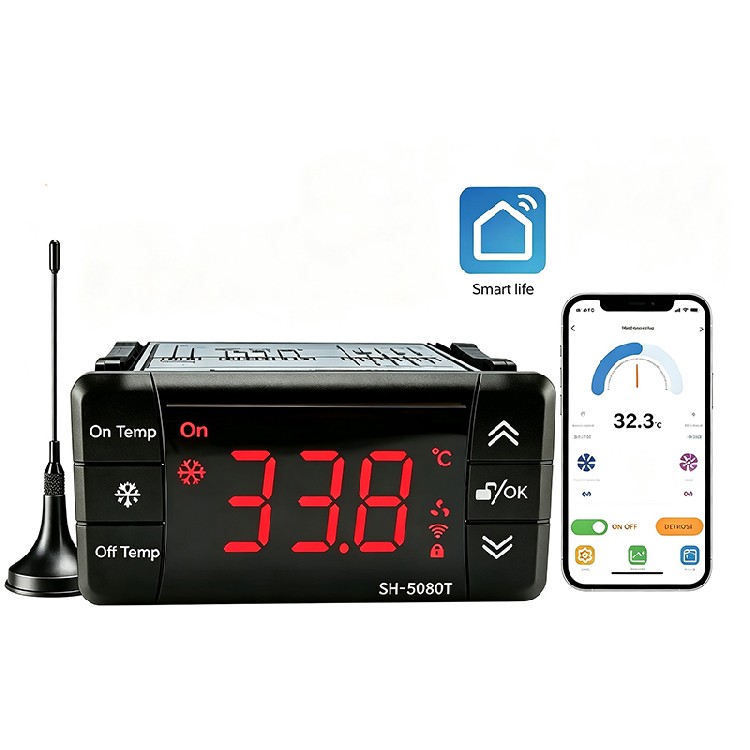

Digital cold storage temperature controller with compressor, defrost and fan outputs, a -40°C to 99°C measuring and controlling range and Smart Life WiFi remote monitoring.
1. Refrigeration, defrost and fan outputs — three independent control outputs for cold storage: the compressor output holds the storage temperature, the defrost output runs timed or manual defrost cycles, and the fan output circulates air with configurable start and stop delays.
2. Wide temperature control range — -40°C to 99°C, with 0.1°C resolution and ±1°C accuracy, reliable across a broad range of conditions.
3. High-resolution digital display — clear LED readout with real-time temperature updates for accurate and easily readable monitoring, and the defrost probe temperature can be checked with one key.
4. Comprehensive safety features — high / low temperature alarms (HA / LA), sensor fault alarms (E1 / E2), external signal disconnection alarm (OUT), and compressor start delay protection that prevents damage from excessive start / stop cycles.
5. Smart Life WiFi remote control — check and control the controller remotely through the Smart Life app (2.4 GHz WiFi only).
6. Energy-efficient and durable design — touch keys with high-precision digital capacitance measurement are unaffected by water droplets, and the ultra-thin integrated front panel carries an IP65 protection rating.
| Model | SH-5080T |
| Measuring and Controlling Range | -40°C to 99°C |
| Resolution | 0.1°C |
| Control Accuracy | ±1°C |
| Sensor Type | NTC thermistor (10 kΩ at 25°C, B value 3435 K) |
| Power Supply | 220 V AC ±10%, 50/60 Hz |
| Relay Output Capacity | 3 A / 250 V AC (compressor, defrost, fan and peripheral relays) |
| Control Outputs | Compressor (refrigeration), defrost, fan; external signal input |
| Defrost Control | Defrost time 1–120 min; defrost cycle 0–120 h; defrost stop temperature -40°C to +50°C; electrothermal / hot gas / wind defrost; manual defrost with one key |
| Compressor Delay Protection | Start delay settable 0–10 min |
| Alarm Codes | E1 / E2 sensor fault; HA high temperature; LA low temperature; OUT external signal disconnection |
| Display Type | LED display |
| Installation Size (Cut-out) | 92 x 44 mm |
| Operating Ambient Temperature | -10°C to 60°C |
| Working Relative Humidity | Not more than 80% |
| Front Panel Protection | IP65, touch keys |
| WiFi Function | Remote check and control via the Smart Life app (2.4 GHz WiFi) |
| Other Functions | One-click restore of factory settings; preset parameter backup and one-click restore; key lock; buzzer alarm silence; temperature correction |
1. Industrial Refrigeration — temperature-sensitive systems such as cold storage and freezer units.
2. Greenhouses — maintain optimal temperature levels for plant growth and environmental control.
3. Aquarium Systems — regulate temperature for aquatic environments to ensure the health of marine life.
4. Incubators — consistent temperature for egg hatching or breeding conditions.
5. HVAC Systems — control refrigeration systems in residential or commercial buildings.
6. Food and Beverage Industry — control the temperature of sensitive products to maintain quality and safety.
