HACCP 2-IN-1 INFRARED AND PROBE THERMOMETER

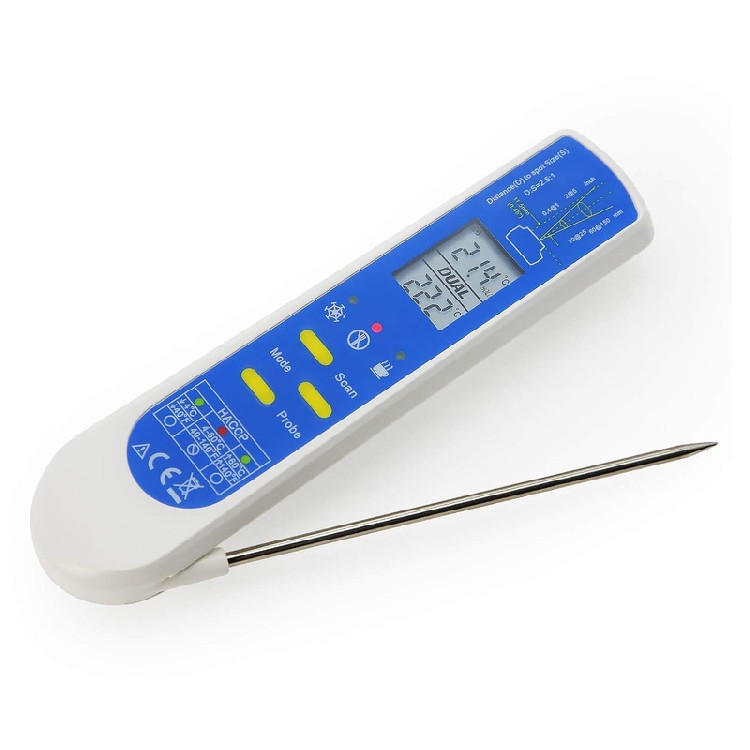

The AMT206 combines a non-contact infrared thermometer with a retractable K-type thermocouple probe in one compact instrument. Use infrared mode for quick surface checks or unfold the probe for contact measurements. A dual display shows the infrared and probe readings, while the HACCP zone display indicates whether a food temperature is in a cold-safe, danger-zone, or hot-safe range.
1. 2-in-1 measurement — non-contact infrared temperature readings and contact readings with a foldable thermocouple probe
2. HACCP zone display — identifies cold-safe temperatures below 4 °C (40 °F), the 4–60 °C (40–140 °F) danger zone, and hot-safe temperatures above 60 °C (140 °F)
3. Splash protection and aiming light — IP65 splash protection and a bright white LED aiming light
4. Minimum, maximum and lock modes — support spot checks and continuous scanning
5. Adjustable emissivity — from 0.10 to 1.00 in 0.01 increments, with a 0.95 default setting
6. Pocket-size design — ultra-thin body with a retractable probe and automatic power-off
| Model | AMT206 |
| Measurement modes | Non-contact infrared (IRT) and contact thermocouple probe (COT) |
| Infrared temperature range | −55 to 250 °C (−67 to 482 °F) |
| Thermocouple probe range | −55 to 330 °C (−67 to 626 °F) |
| Infrared accuracy for HACCP | ±1.0 °C (±1.8 °F) from 0 to 65 °C (32 to 149 °F); ±1.5% of reading outside this range |
| Probe accuracy | ±0.5 °C (±0.9 °F), as listed in the product specifications |
| Temperature resolution | 0.2 °C / 0.5 °F from −9.9 to 199.9 °C; otherwise 1 °C / 1 °F |
| Distance-to-spot ratio | 2.5:1 |
| Spectral response | 8–14 µm |
| Emissivity | 0.10–1.00, adjustable in 0.01 steps; 0.95 default |
| Operating temperature | 0 to 50 °C (32 to 122 °F) |
| Protection rating | IP65 splash protection |
| Display and aiming light | Dual display for infrared and probe readings with HACCP status indicators; bright white LED aiming light |
| Functions | Minimum, maximum, lock, continuous scan, and automatic power-off |
| Battery and autonomy | 2 × AAA, 1.5 V; up to 18 hours of continuous use; automatic shutoff after 15 seconds as specified in the manual |
| Dimensions | 22.18 × 38 × 160 mm (0.87 × 1.50 × 6.30 in.) |
| Weight with batteries | 98.1 g (3.5 oz) |
The display groups food temperatures into three HACCP zones: cold-safe below 4 °C (40 °F), the danger zone from 4 to 60 °C (40 to 140 °F), and hot-safe above 60 °C (140 °F). This visual indicator helps users quickly interpret a reading during food temperature checks.
In infrared mode, aim the lens at the target and scan to measure surface temperature. The 2.5:1 distance-to-spot ratio means the measured area grows as the instrument moves farther from the target. In probe mode, unfold the thermocouple probe and use it for contact temperature readings. The instrument supports minimum, maximum, and lock functions in both measurement modes.
1. Food safety — food temperature checks in kitchens and food-safety workflows
2. Non-contact checks — infrared mode measures surface temperature without contact with the target
3. Contact measurement — the probe mode measures temperature at the probe tip
4. Other uses — HVAC checks, science labs, and classroom demonstrations
