AMT537 Tint Solar Film Transmission Meter

Solar Film Transmission Tester

AMT537 Tint Solar Film Transmission Meter

Keywords: tint meter, solar film transmission meter, window tint tester, TSER SHGC meter, IR UV rejection meter

7-in-1 car window tint tester that reads visible light, IR (940/1400nm), UV, TSER and SHGC in one pass.

The AMT537 Tint Solar Film Transmission Meter is a compact, portable instrument for verifying automotive and architectural window films. It simultaneously tests infrared and ultraviolet rejection, visible light transmittance, Total Solar Energy Rejection (TSER) and Solar Heat Gain Coefficient (SHGC) across solar-control and safety films, helping shops, manufacturers and quality-control labs demonstrate and certify film performance on the spot.

With single-slot self-calibration, a 240×240 TFT color screen and seven switchable display modes, the AMT537 delivers clear, repeatable results for film demonstrations, production inspection and incoming-material verification.

Key Features

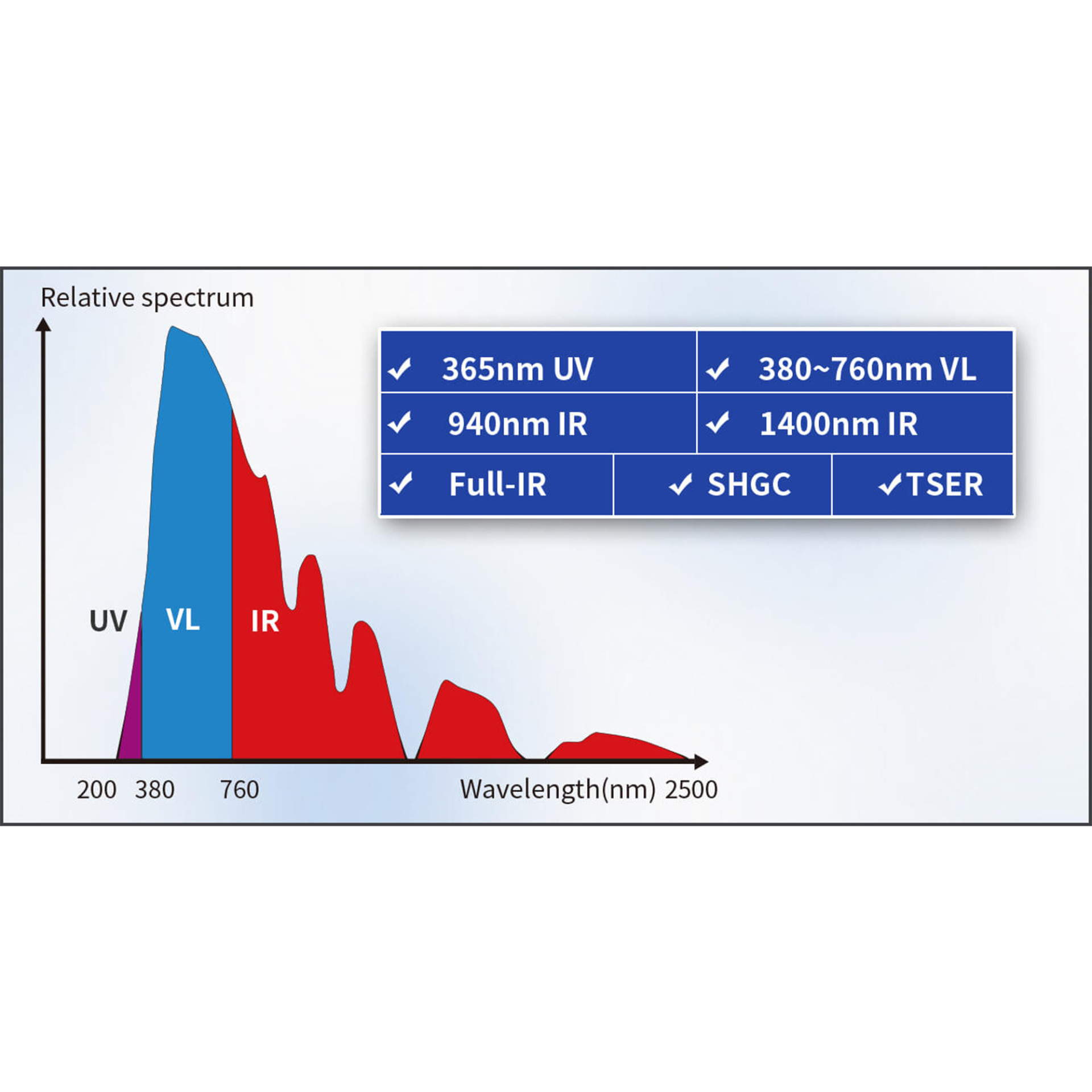

1. Seven parameters at once — measures UV, Visible Light, IR 940nm, IR 1400nm, Full IR, TSER and SHGC in a single test.

2. One-touch measurement — insert the film into the slot and the meter shows all values instantly; HOLD freezes the reading for recording.

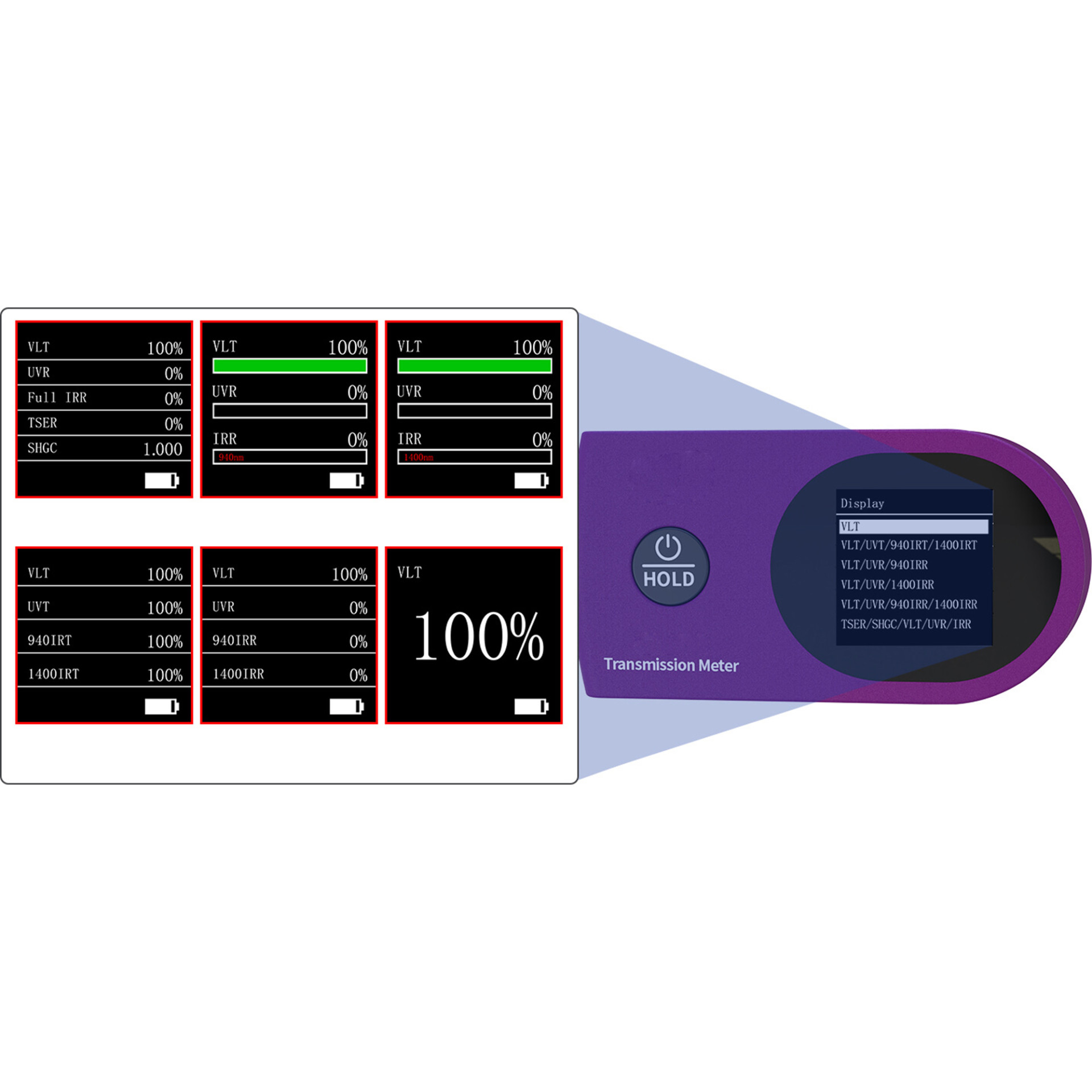

3. Multiple display modes — easily switch among display configurations to focus on the data you need.

4. Automatic self-calibration — powers on with an empty slot for fast, drift-free zeroing.

5. Compact and portable — pocket-sized body with a color TFT screen, ideal for on-site demos and QC.

How to Use

1. Power on — short press the button; keep the test slot empty so the meter completes self-calibration.

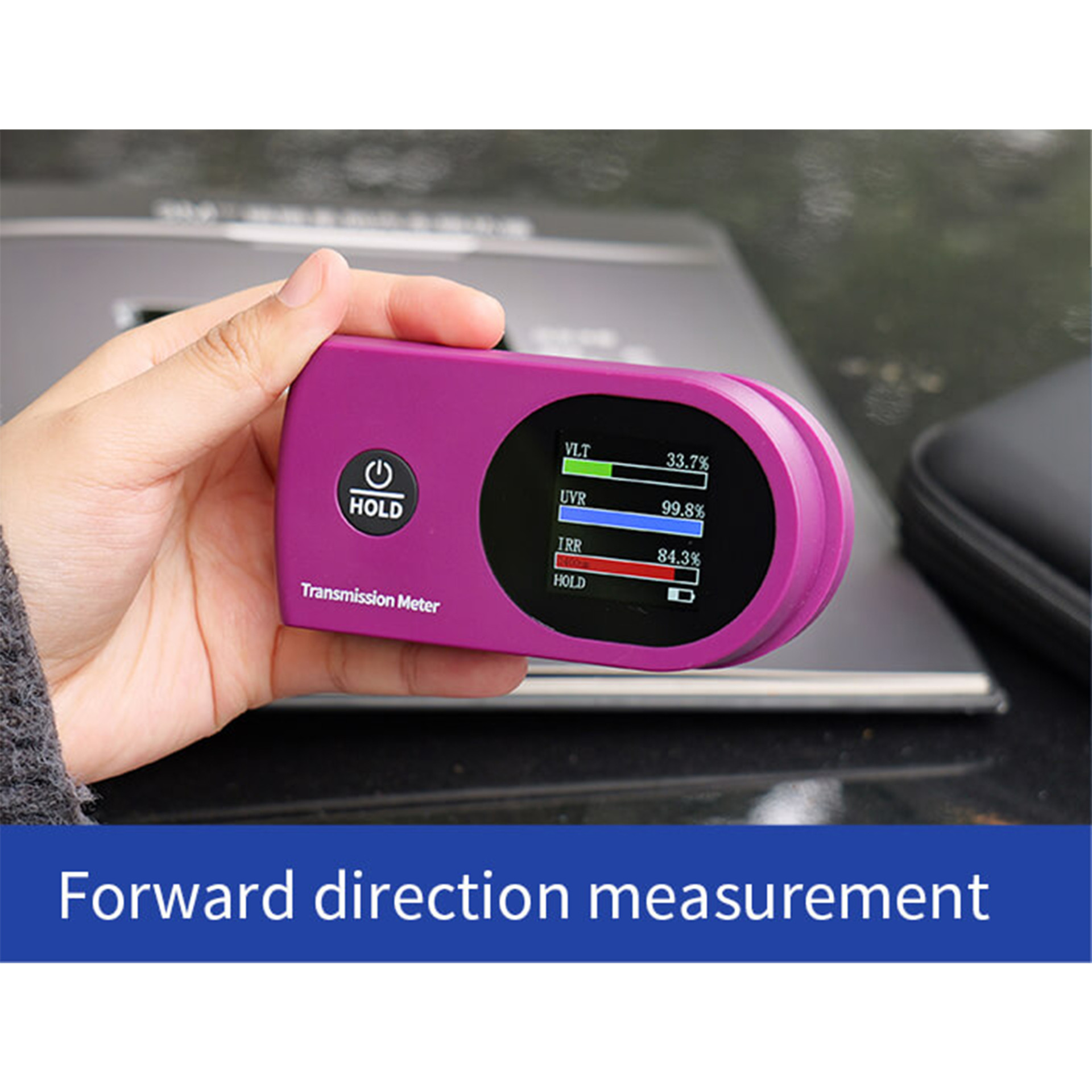

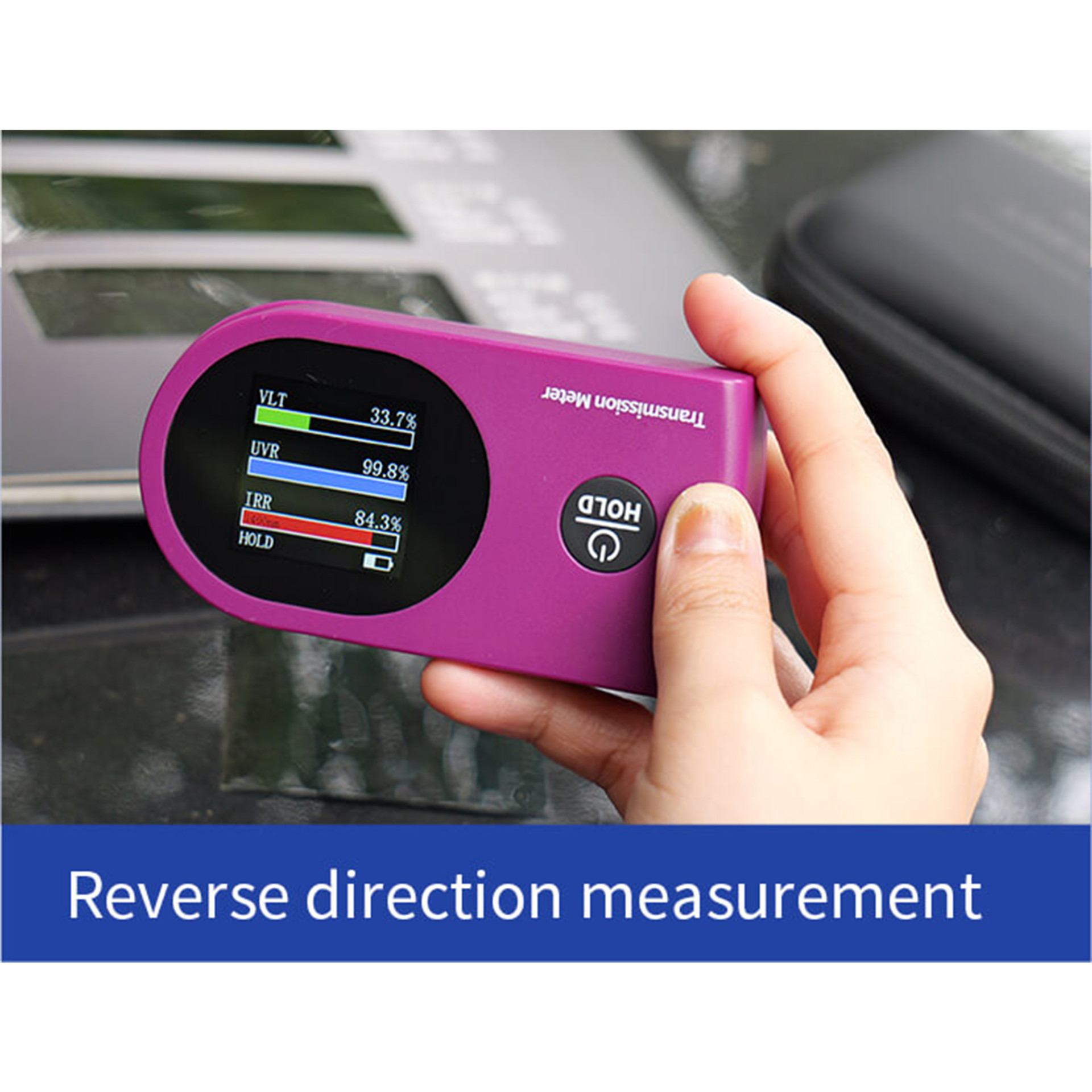

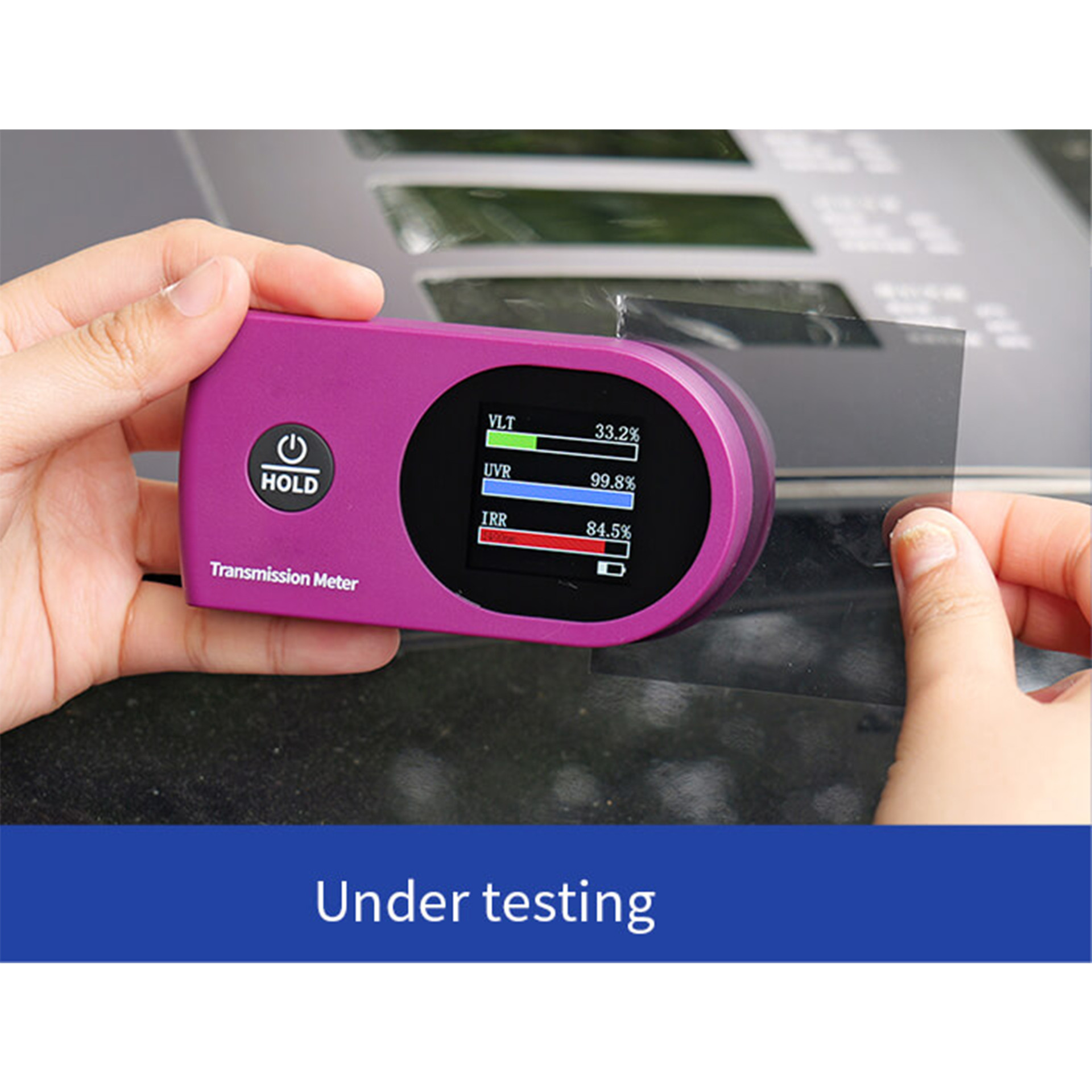

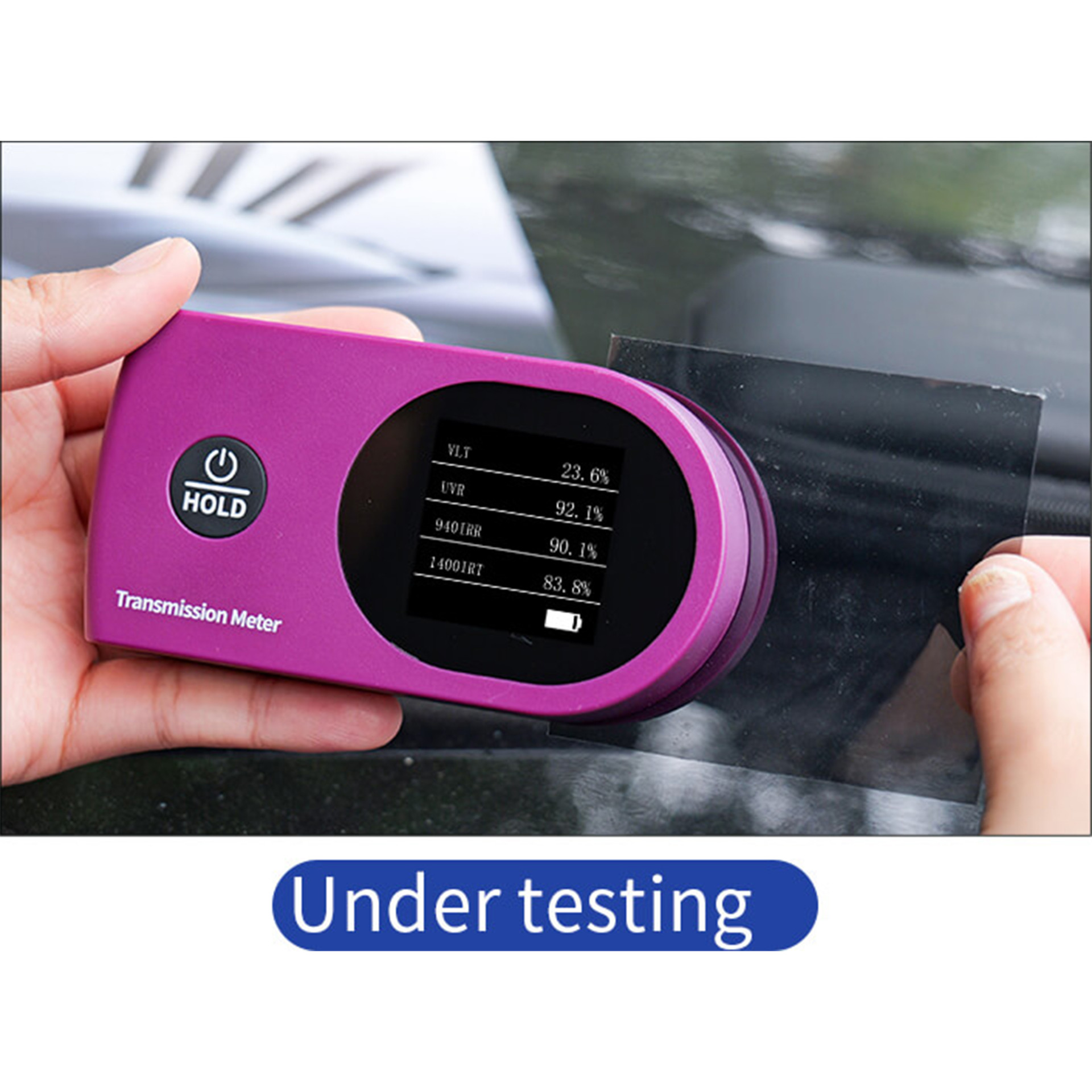

2. Insert the film — place the film sample into the test slot; the screen displays the measured values immediately.

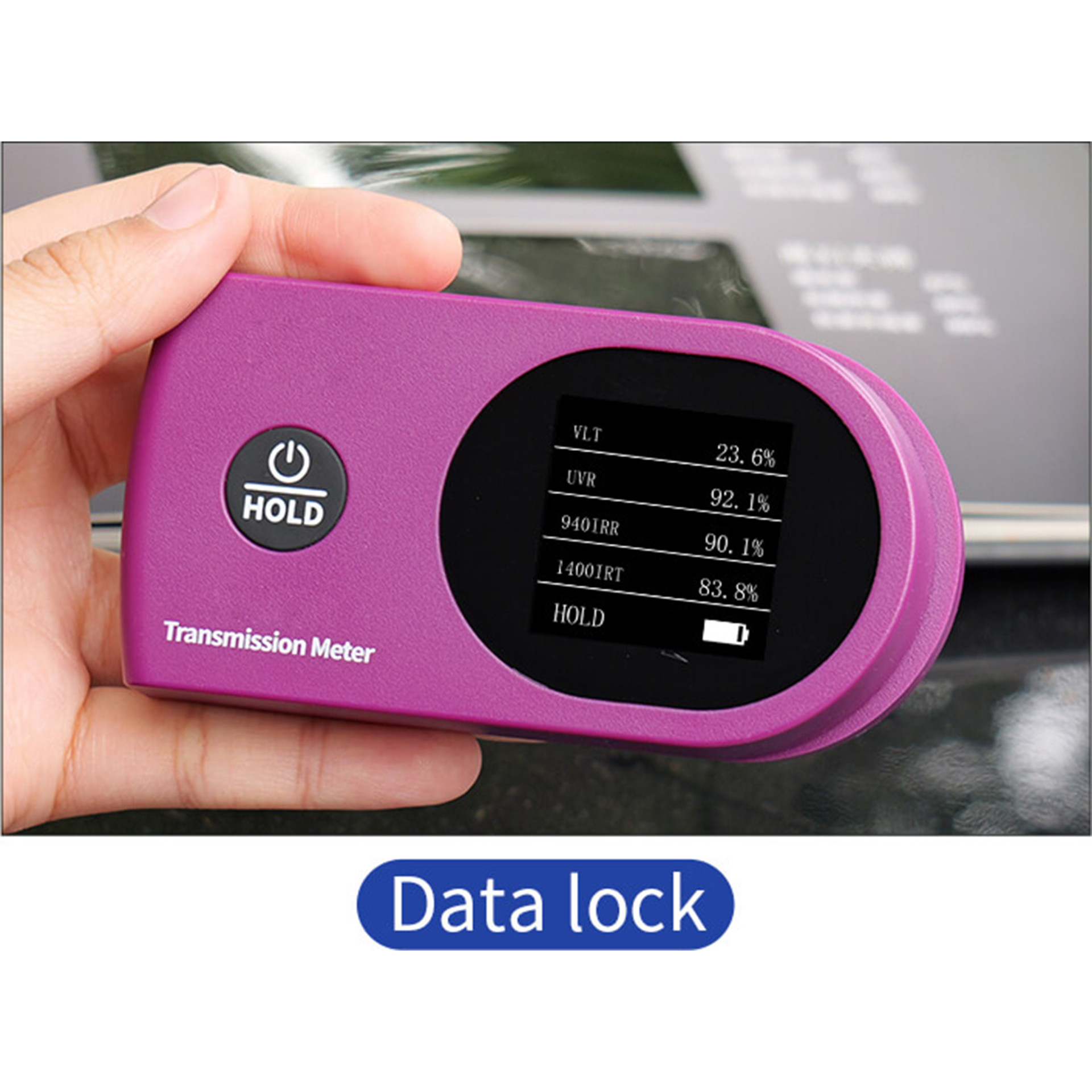

3. Hold the reading — short press HOLD to freeze the value; press again to return to live measurement.

4. Setup — in off state, long press the button for 3 seconds to enter SETUP; short press to select, long press to confirm.

Technical Specifications

Measured parameters	UV, Visible Light, IR 940nm, IR 1400nm, Full IR, TSER, SHGC
UV peak wavelength	365 nm
Visible light peak wavelength	380 nm ~ 760 nm (CIE photopic function)
IR peak wavelength	940 nm, 1400 nm and Full IR
Solar Heat Gain Coefficient (SHGC)	0.000 ~ 1.000
Total Solar Energy Rejection (TSER)	0.0% ~ 100%
Resolution	0.1%
Accuracy	± 2% (colorless uniform light-transmitting material)
Maximum sample thickness	0.8 mm
Display	240 × 240 dot matrix TFT color screen

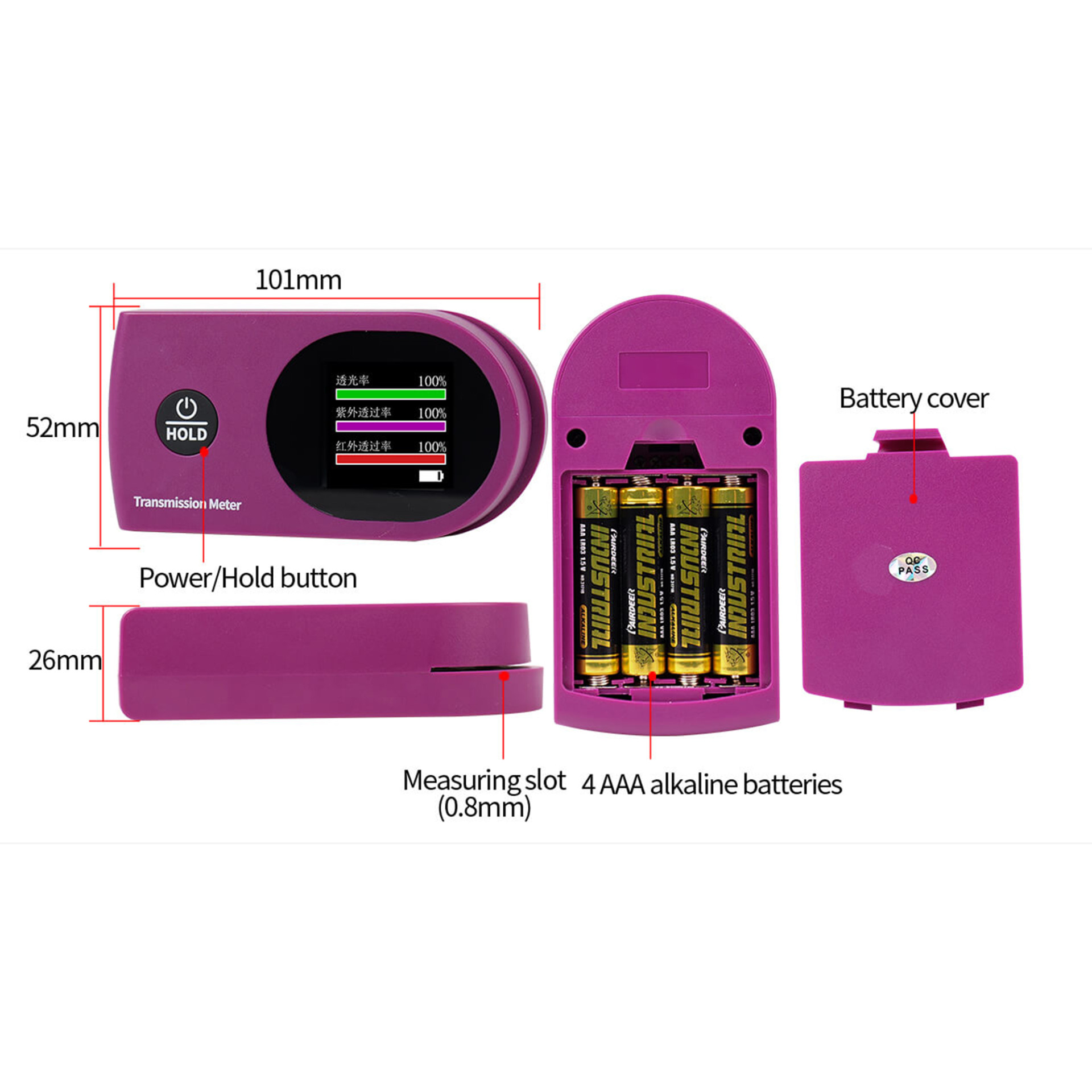

Size	101 mm × 52 mm × 25.5 mm
Weight	about 70 g
Power supply	4 × AAA alkaline batteries
Standards	GB/T 31849-2015, GA/T 744-2013, JJF 1225-2009, JJG 178-2007

Applications

1. Automotive window-film shops for on-site tint demonstration and verification.

2. Film manufacturers and QC labs for production and incoming-material testing.

3. Architectural glass and solar-control film performance certification.

4. Regulatory and compliance inspection of filmed vehicle glass.
