AMT315 Multi-Probe UV Light Meter

AMT315 Multi-Probe UV Light Meter

Applications:

1. Ultraviolet (UV) light is categorized into UVA (315~420 nm), UVB (280~315 nm), and UVC (230~280 nm) bands.

2. UVA is commonly used in industries such as photopolymerization, lithographic exposure, UV curing, and integrated circuit fabrication.

3. UVB is used in medical and healthcare environments for phototherapy lamps, plant growth lights, and reptile UVB fluorescent lamps.

4. UVC, also called shortwave UV, is primarily used for sterilization. UVC germicidal lamps are widely employed in hospitals, pharmaceutical cleanrooms, CDC labs, and wastewater treatment plants.

5. The AMT315 handheld UV meter is ideal for these applications, where different probes are required to measure the radiation intensity or energy of specific UV bands.

Features:

1. Compatible with 12 different probes for UVA, UVB, UVC, and more Simultaneously records UV intensity, energy, and testing duration

2. Automatically calculates maximum, minimum, and average power values

Probe Selection:

1. We offer 12 different probe models to meet various needs based on spectral range, application type, measuring range, and test aperture size. (Probes are sold separately.)

2. Select probes based on the UV light source’s spectral range and application.

3. Refer to our application guide for recommended probes for common industry uses.

Suggestion of Probes for Classic Industry Application:

1. Detect UV Aging Box: UVA-X1, UVB-X0, UVA-X2

2. Detect Ambient Light And Sunlight: UVA-X1, UVB-X0

3. Detect Welding Arc: UVA-X1, UVB-X0, UVC-X0

4. Detect UV Light Of Non-destructive Testing: UVA-X0

5. Detect UV Nail Lamp: UVALED-X3

6. Detect Plant Growth Lamp Or Reptile Lamp: UVB-X0

7. Detecting The 222nm Far UVC Lamps: UVC-X2

8. Detecting The Medical Phototherapy Devices Or LED Blue Therapy Light: BL-X0

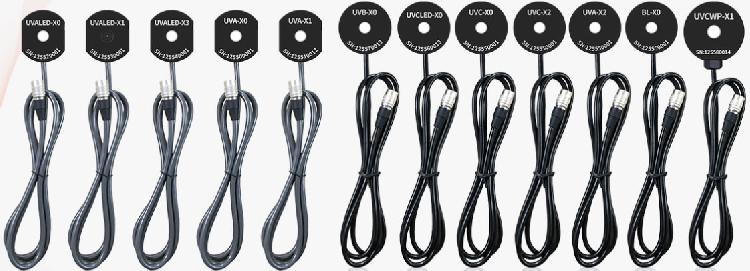

Probe Details:

No.	Probe	Spectral Range	Power Range	Aperture	Application
1	UVC-X0	230~280nm	0~200000μW/cm²	Φ10mm	254nm UV sterilization mercury lamp
2	UVC-X2	210~250nm	0~200000μW/cm²	Φ10mm	222nm far UVC lamps
3	UVCWP-X1	230~280nm	0~200000μW/cm²	Φ10mm	254nm UV sterilization mercury lamp
4	UVCLED-X0	240~320nm	0~200000μW/cm²	Φ10mm	260nm-285nm UV LED germicidal lamp
5	UVB-X0	280~315nm	0~200000μW/cm²	Φ10mm	General UVB intensity and energy measurement
6	UVA-X0	315~400nm	0~2000μW/cm²	Φ10mm	High pressure mercury lamp in UV curing industry
7	UVA-X1	315~400nm	0~200000μW/cm²	Φ10mm	General UVA intensity and energy measurement
8	UVA-X2	315~365nm	0~200000μW/cm²	Φ10mm	340nm UVA aging lamps
9	UVALED-X0	340~420nm	0~200000μW/cm²	Φ10mm	Area light source of UV LED in UV curing industry
10	UVALED-X1	340~420nm	0~200000μW/cm²	Φ10mm	Point light source of UV LED in UV curing industry
11	UVALED-X3	340~420nm	0~200000μW/cm²	Φ10mm	General UVA+UVV LED, low power measuring range
12	BL-X0	410~490nm	0~2000μW/cm²	Φ10mm	450nm blue light

Order Number:

1. AMT315-1: UVC-X0

2. AMT315-2: UVC-X2

3. AMT315-3: UVCWP-X1

4. AMT315-4: UVCLED-X0

5. AMT315-5: UVB-X0

6. AMT315-6: UVA-X0

7. AMT315-7: UVA-X1

8. AMT315-8: UVA-X2

9. AMT315-9: UVALED-X0

10. AMT315-10: UVALED-X1

11. AMT315-11: UVALED-X3

12. AMT315-12: BL-X0
